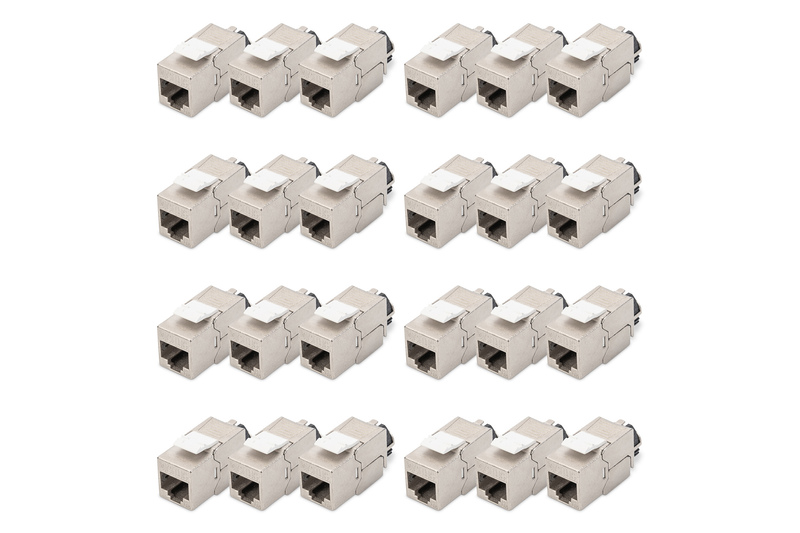

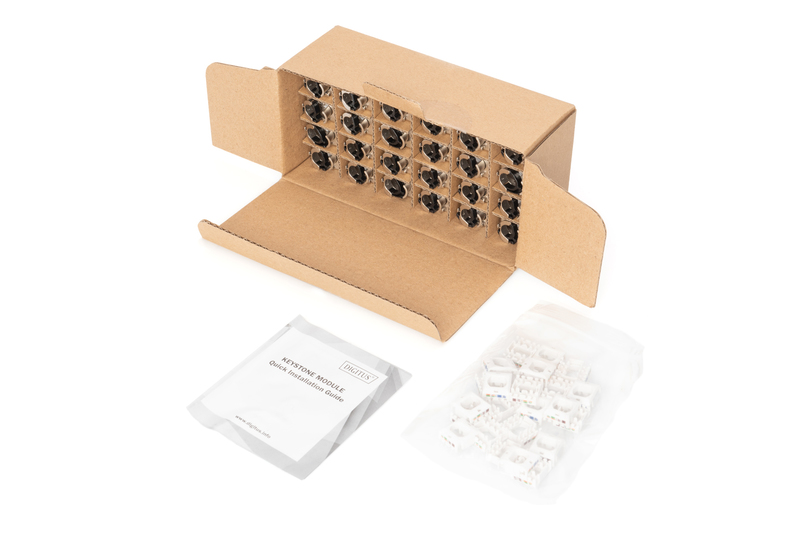

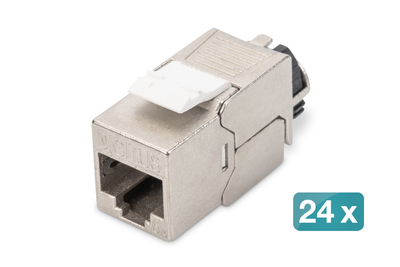

CAT 6A Keystone Jack, shielded tool free connec., set 24 pcs

Multi-design, shielded, tool free and intelligent cable manager

• The cat. 6A keystone module with 360 ° shielding supports transmission speeds of up to 10 GBit/s & 500 MHz in connection with cat. 6A or higher network installation cables

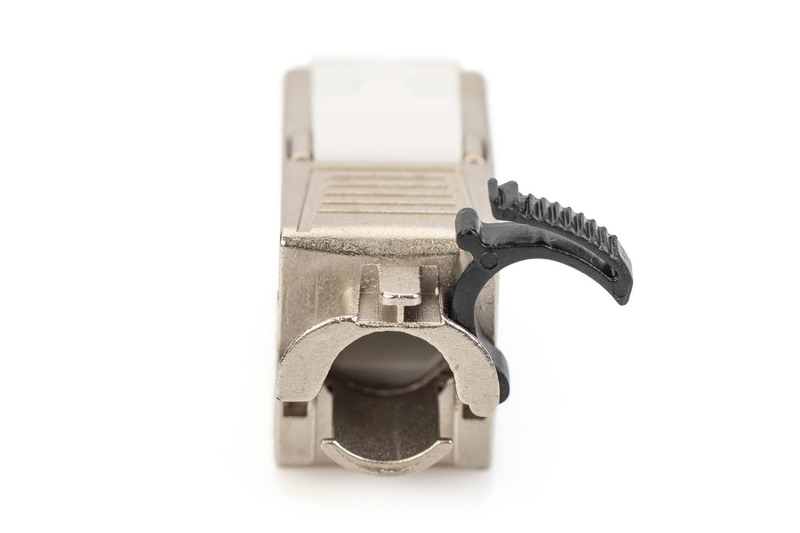

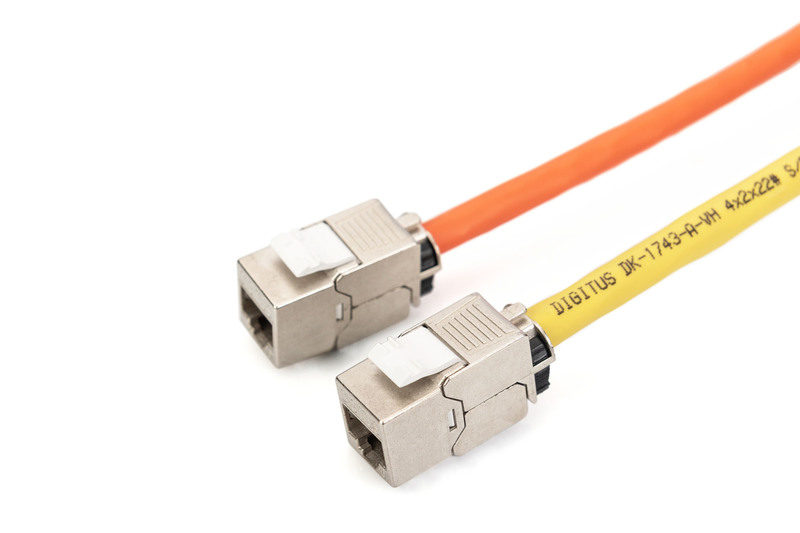

• Cable attachment using resealable quick locks makes it possible to reopen and therefore use the keystone module multiple times, for example with field applications

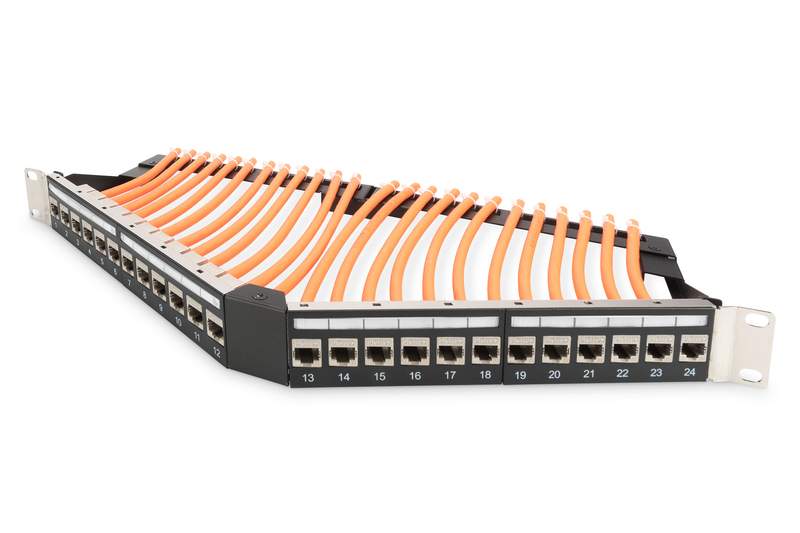

• In connection with a modular patch panel and modular network junction boxes, the cat. 6A keystone modules are perfect for modern, structured building cabling
• The mounting connection of the keystone module in category 6A / class EA makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1

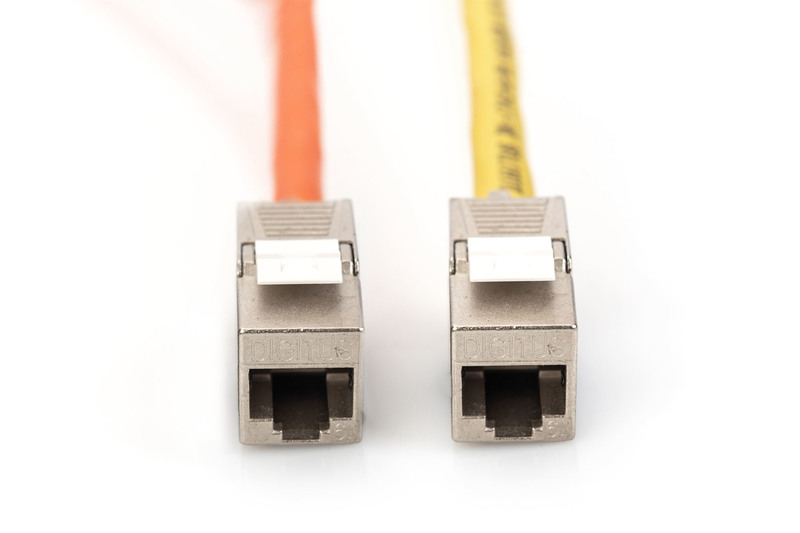

• Keystone jack with RJ45 jack is GHMT certified - design compatible with standard network sockets - LSA rails color-coded in accordance with EIA/TIA 568 A&B

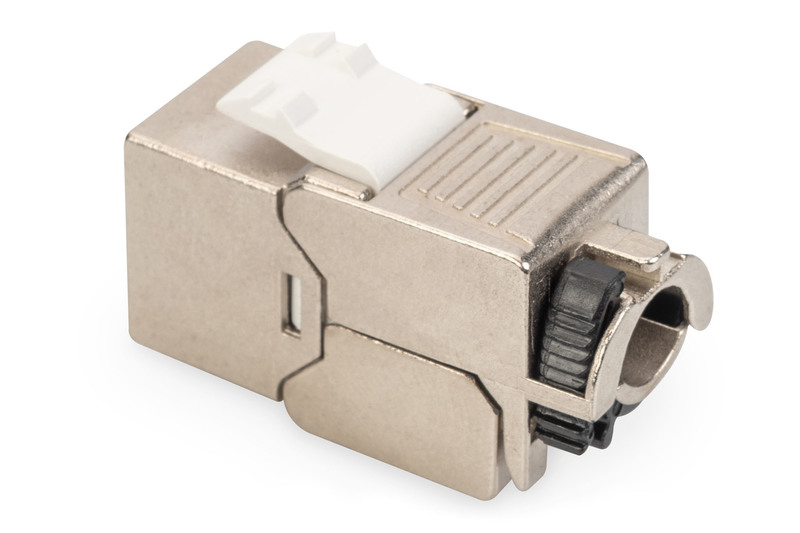

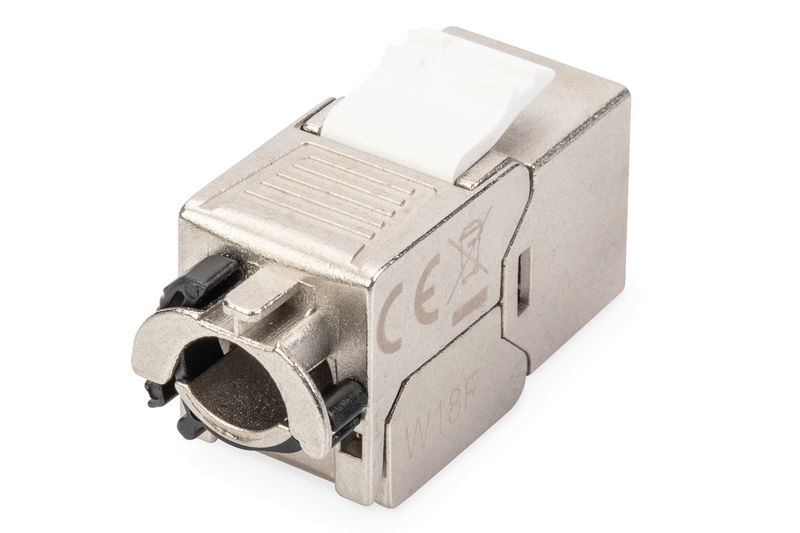

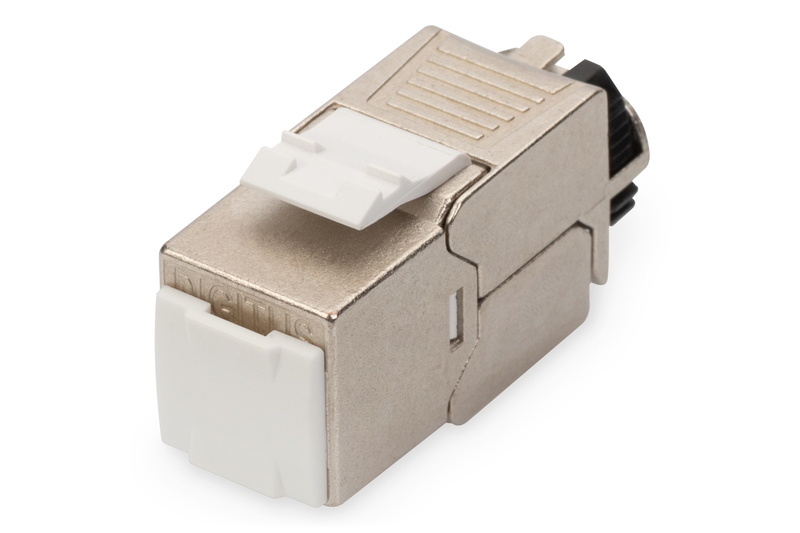

The shielded cat. 6A keystone module set DN-93617-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have a 360° shield contact and a resealable, intelligent cable manager for cable grip and cable fixation. The compact design makes series installation possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.

Technical Details

• Category 6A 10G Base-T, 500 MHz
• ISO/IEC 11801 3rd edition, EN 50173-1
• Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
• Suitable for distribution panel and junction box mounting
• RJ45 jack, 8P8C
• Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B

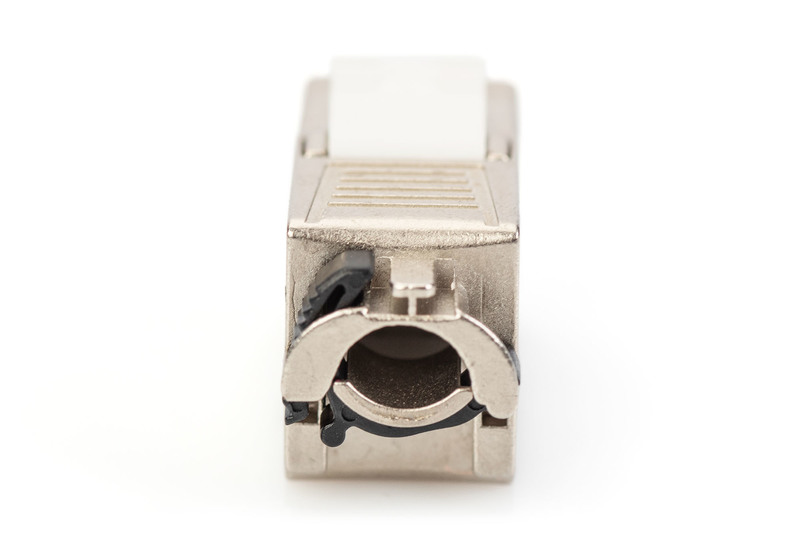

• Cable grip and cable fixation using intelligent cable manager

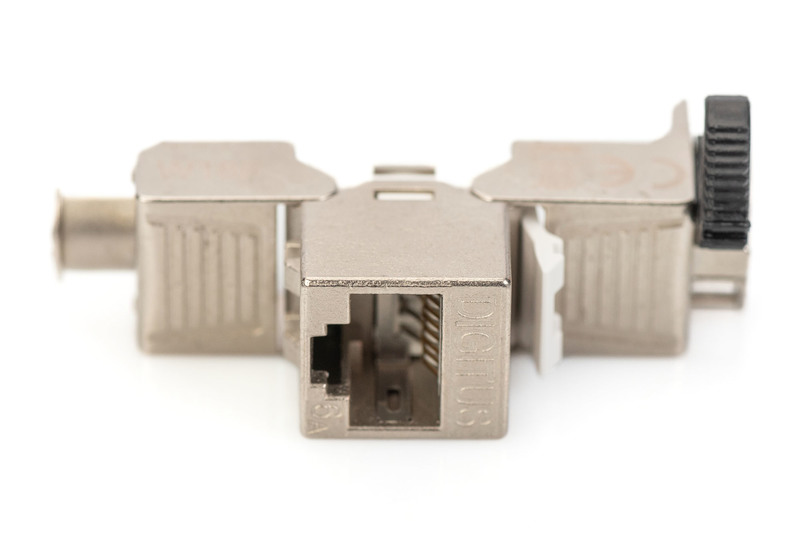

• Tool-free mounting connection
• 360° shield contact
• Case material: Zinc die-cast – nickel-plated
• Contact material: Phosphor bronze
• Contact coating: Nickel, gold-plated 0.5 µ
• Insertion force: Max. 30N (as per IEC 60603-7-51)
• Holding force: 7.7 kg between jack and plug
• Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
• Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
• Tested with AWG 22/1 solid installation cable
• (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
• Intelligent cable manager (resealable)
• Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
• Weight: 19.5 g
