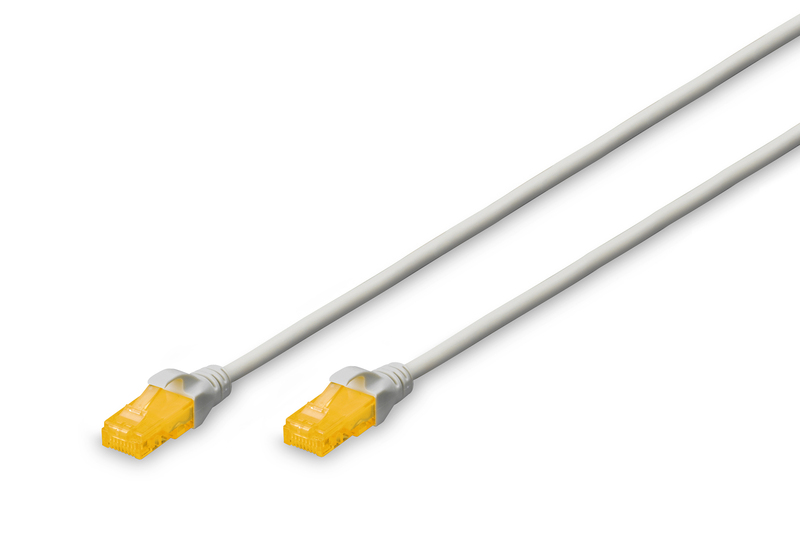

CAT 6A U-UTP slim patch cord, Cu, LSZH AWG 28/7, length 1 m, color grey

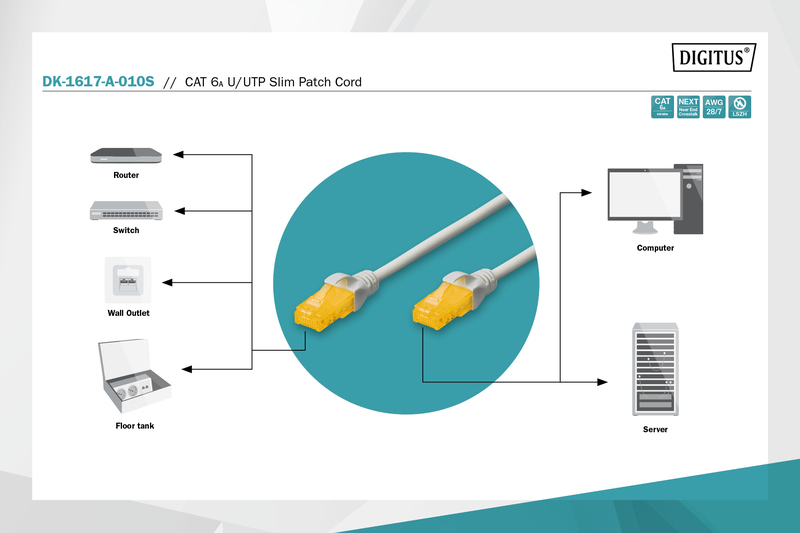

Enables flexible and space-saving cabling in your network

• Small outer diameter of 3.65 mm is suitable for flexible use
• With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission
• Transparent yellow colored plug for easy identification of Category 6A (500 MHz)
• Conductor: Copper (Cu)

DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, The DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

Technical Details

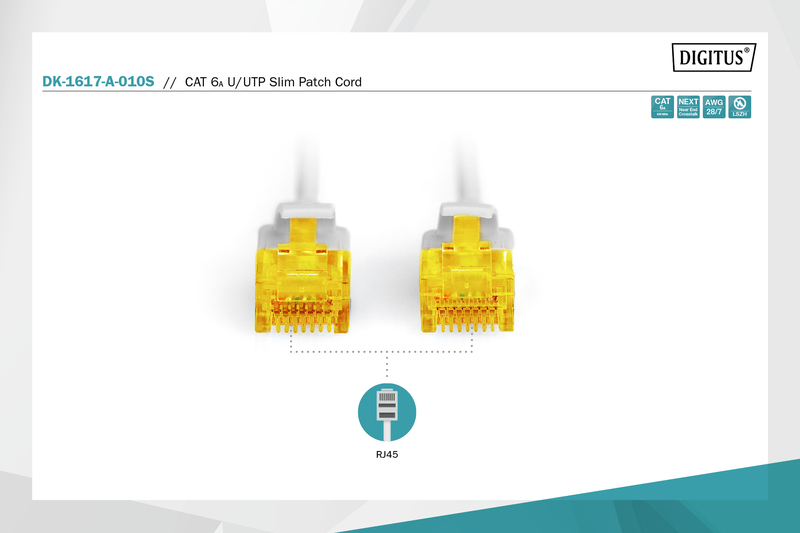

• 2x RJ45 (8P8C) connectors
• Boots with kink protection, strain relief and latch protection
• Length marking on boot
• Conductor: Copper (Cu)
• Bending radius: 4D (outer diameter x 4)
• outer diameter: 3,65 mm
• Slim Version: yes
• Length: 1 m
• Category: CAT 6A
• Color: grey
• Configuration: 1:1
• Jacket: LSOH
• Shielding: U-UTP, unshielded
• Structure: 4 x 2 AWG 28/7, twisted pair
