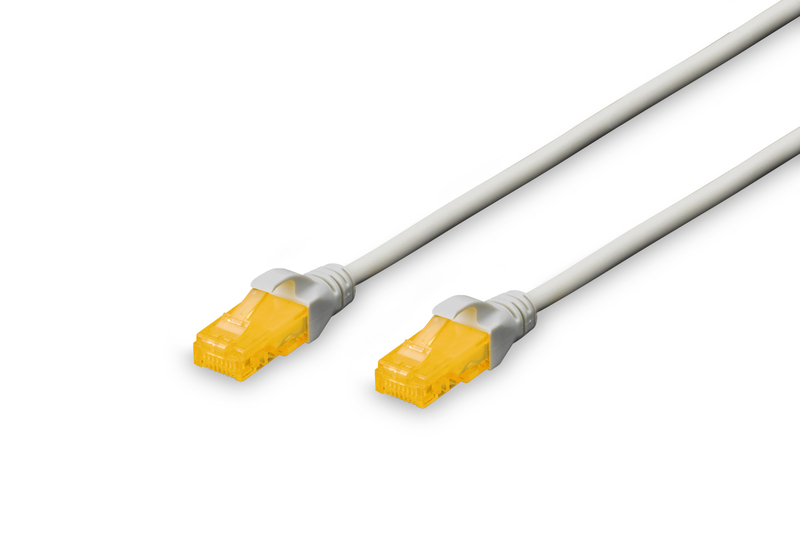

CAT 6A U-UTP patch cord, Cu, LSZH AWG 26/7, length 0.5 m, color grey

Future-oriented standards and high-end quality for your network.

• With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
• Transparent yellow colored plug for easy identification of Category 6A (500 MHz)
• Conductor: Copper (Cu)
• PoE+ ready

The DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

Technical Details

• 2x RJ45 (8P8C) connectors
• Boots with kink protection, strain relief and latch protection
• Length marking on boot
• Conductor: Copper (Cu)
• Assortment: Twisted Pair Patch Cables
• Slim Version: no
• Length: 0.5 m
• Connector 1: Modular RJ45 (8/8) plug
• Connector 2: Modular RJ45 (8/8) plug
• Category: CAT 6A
• Packaging: DIGITUS Polybag
• Color: grey
• Configuration: 1:1
• Jacket: LSOH
• Shielding: U-UTP, unshielded

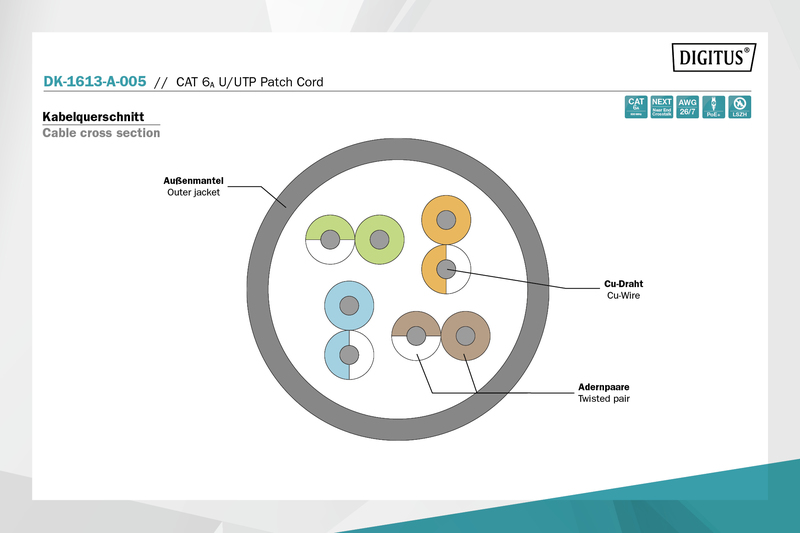

• Structure: 4 x 2 AWG 26/7, twisted pair
