DIGITUS Modular Patch Panel, 16-port
DN-91400
EAN 4016032280750
| Print version | |
|---|---|
| Datasheet ENG | |
| Datasheet GER |
-
Description

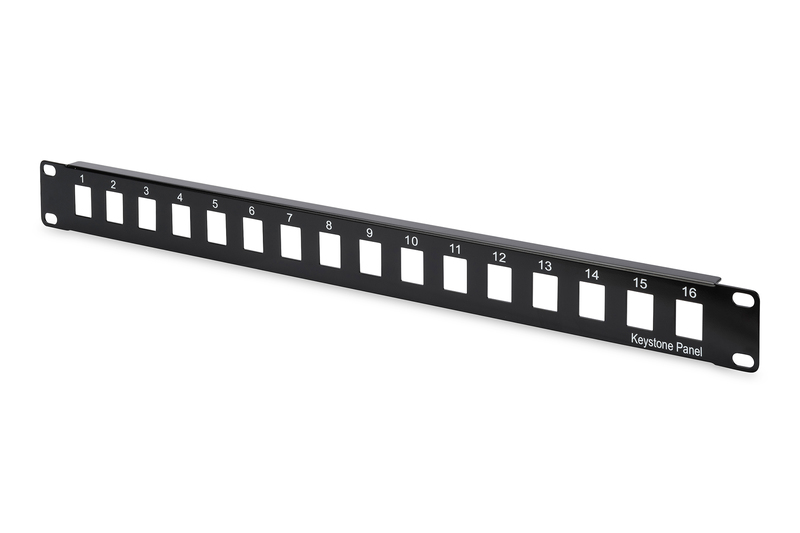

Modular Patch Panel, unshielded, 16-port blank, 1U, rack mount, black RAL 9005
The Modular Patch Panel from DIGITUS® is available as 16- or 24-port version. The 1.5 mm cold rolled c-steel provides the best storage of your Keystone Modules.
Technical Details
- Layout Keystone Entry: Double-row
- Area of application: 483 mm (19") cabinet
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- Suitable for unshielded Digitus® Keystone Modules and Couplers
- Technical properties:
- Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
- Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
- Physical properties:
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Color: black, RAL 9005
- Units: 1
- Ports: 16
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 64 22,02 58,00 24,00 25,00 34800,00 Packaging Unit Inside 8 2,75 56,50 10,00 7,50 4237,50 Packaging Unit Single 1 0,34 48,50 4,30 1,50 312,83 Net single without Packaging 1 0,25 48,50 4,30 1,50 312,83 -
