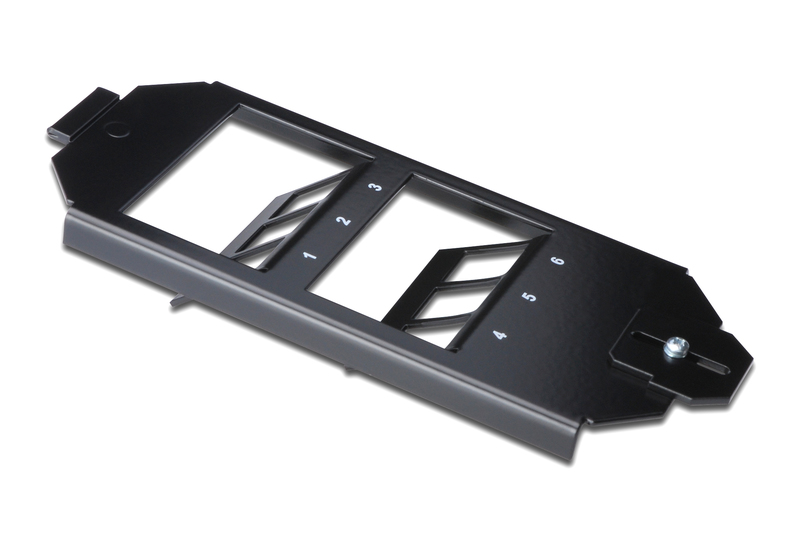

Frame set, 2-level for 6x Keystone Jacks Suitable for OBO-Ackermann GES6

Frame set suitable for Ackermann GES 2, 4, 6, R4, R7

The DIGITUS® Frame sets function as adapter for the installation of Keystone Modules. They are available as 2-level version for 6x Keystone Modules or as 3-level version for 9x Keystone Modules.

Technical Details

• Layout keystone entry: 45° outlet
• Area of application: Floor box
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for GES 2, GES 4, GES 4/10, GESR 4, GES 6, GES 6/10, GESR 8/10

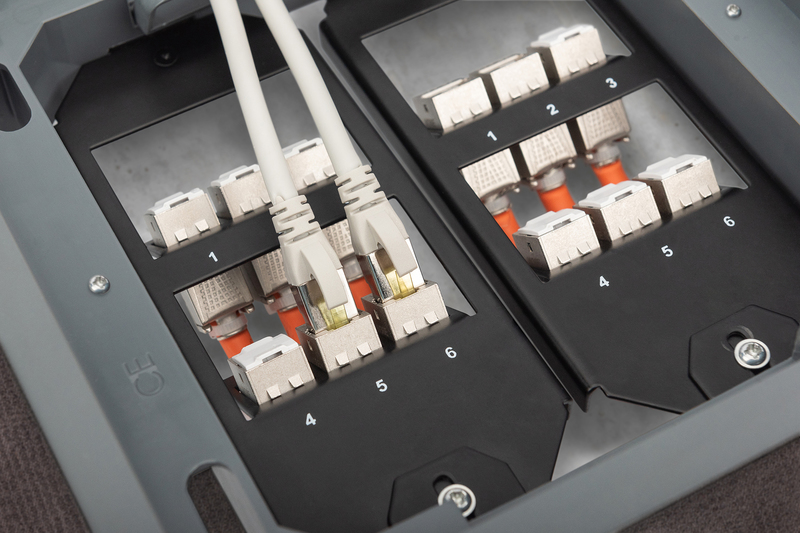

• Frame suitable for installation in Ackermann floor box (OBO Bettermann underfloor systems)
• Plug direction of module 45° vertical
• Technical properties:
• Housing material: Metal
• Physical properties:
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
