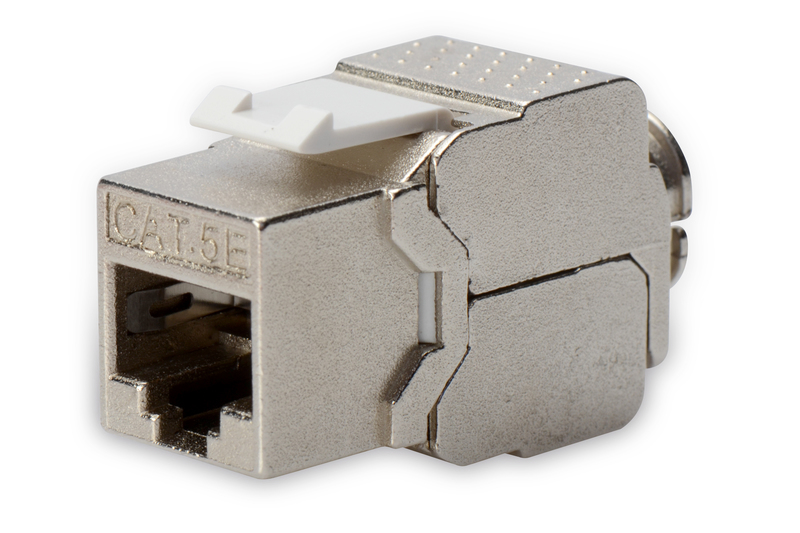

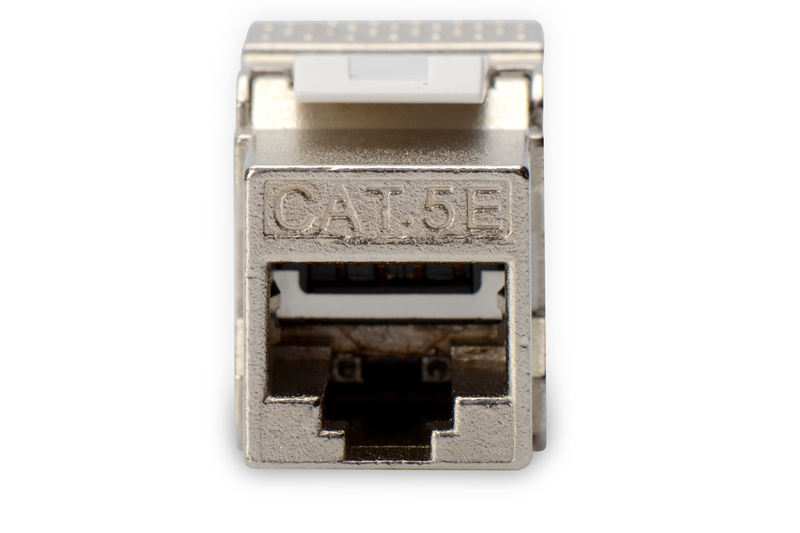

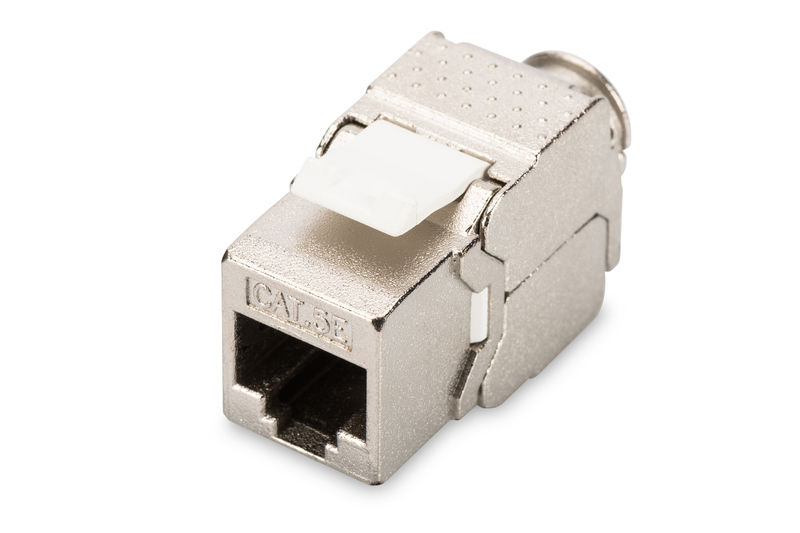

CAT 5e Keystone Jack, shielded Class D, RJ45 to LSA, tool free connection

Future-oriented standards and high-end quality for your network.

• The Cat 5e keystone module with 360° shielding supports transmission speeds of up to 1 GBit/s & 100 MHz in connection with cat. 5e or higher network installation cables

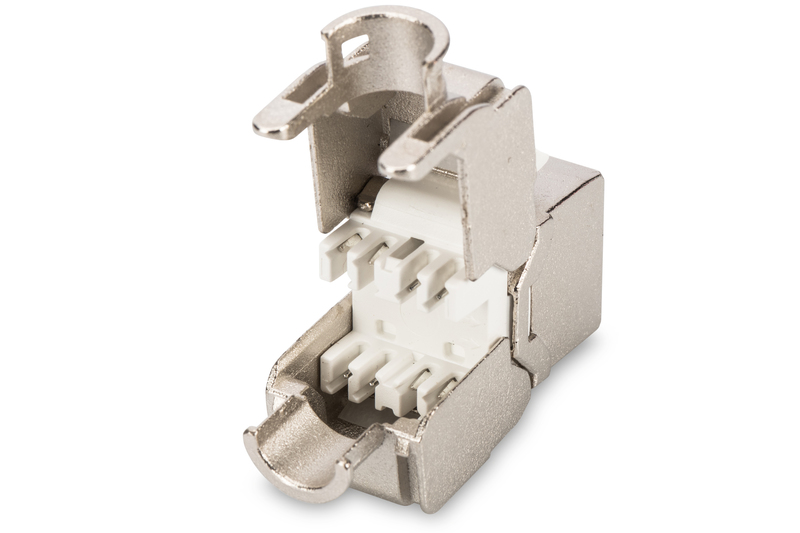

• Cable fixation is accomplished using integrated locking caps that can be opened at any time without tools in order to use the keystone module multiple times, for example with field applications
• In connection with a modular patch panel and modular network junction boxes, the cat. 5e keystone modules are perfect for structured building cabling
• The mounting connection of the keystone module in category 5e / class D makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1
• Stable plastic locking lever on the top of the keystone jack - LSA strips are color-coded in accordance with EIA/TIA 568 A&B - The tensile load between the jack and the plug is 7.7 kg

CAT 5e Keystone Jack, shielded,Class D, RJ45 to LSA, tool free connection

Technical Details

• Transmission properties: Category 5e
• Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for patch panels and mounting outlets
• RJ45 female, 8P8C
• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Cable fixing with smart cable ties
• Tool-free installation
• 360° shield coverage
• Technical properties:
• Housing material: Zinc die-cast, nickel-plated
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
• Weight: 23 g
