DIGITUS CAT 3 ISDN Patch Panel, unshielded, grey
DN-91325-1
EAN 4016032269007
| Print version | |
|---|---|
| Datasheet ENG | |
| Datasheet GER |
-
Description

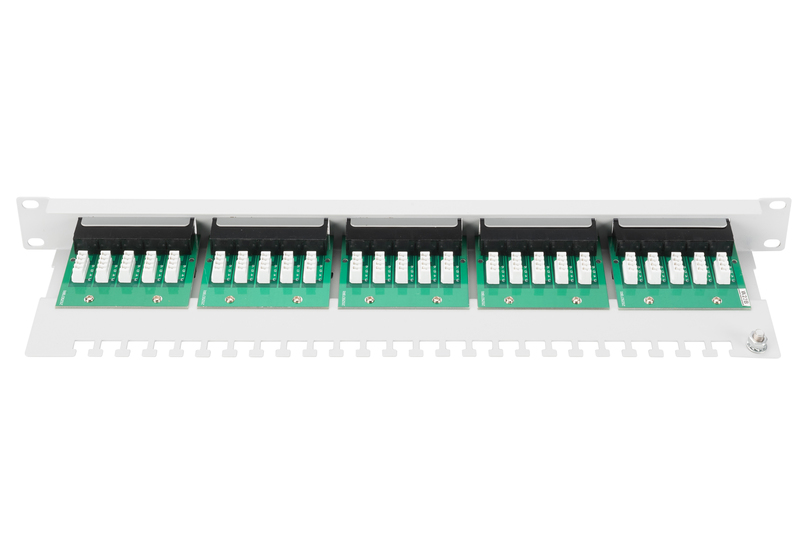

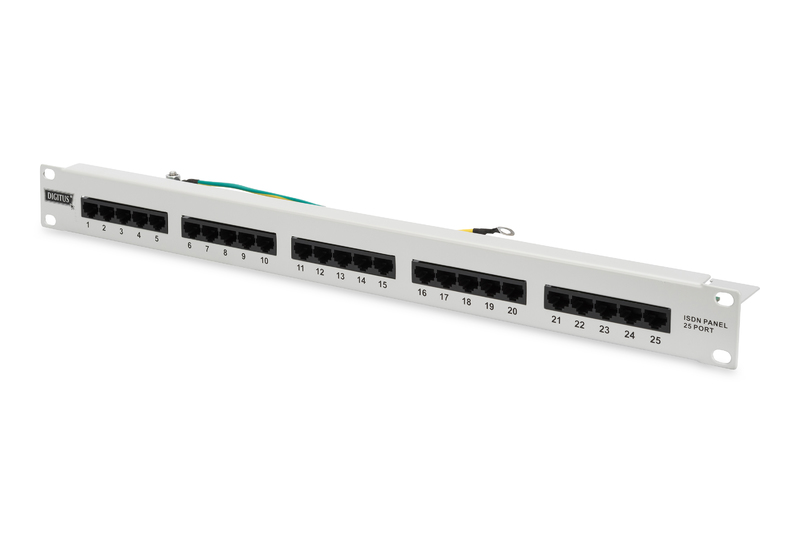

CAT 3 ISDN Patch Panel, unshielded, 25-port RJ45, 8P4C, LSA, 1U, rack mount, grey, 482x44x109
Future-oriented standards and high-end quality for your network.
The ISDN Patch Panels from DIGITUS® are available as 25- or 50-port version. With 1.5 mm galvanized cold-rolled steel they are perfectly suitable for 19" rack mounting.
Technical Details
- Suitable for 483 mm (19") rack mount
- Suitable for cables with AWG 22-26 diameter
- Material housing: SECC, 1.5 mm electrogalvanized, cold-rolled steel acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female, 8P4C
- Unshielded RJ45 jacks
- Material contacts: Phosphor bronze
- Contacts coating: Nickel, gold plated 0,3µ
- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Material IDC Terminal: Phosphor bronze with 50 µ tin plated over 60 µ nickel plated
- Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness
- Insertion force: ≤ 30 N
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Operating temperature: -20°C ... +70°C
- Current carrying capacity: 1A at 50 °C
- Isolation resistance > 500MOhm
- Color: Grey (RAL 7035)
- Color: light grey, RAL 7035
- Units: 1
- Category: CAT 3
- Ports: 25
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 10 14,46 53,50 32,00 28,00 47936,00 Packaging Unit Inside 1 1,45 5,20 51,30 14,80 3948,05 Packaging Unit Single 1 1,45 51,50 5,50 10,50 2974,12 Net single without Packaging 1 1,34 51,50 5,50 10,50 2974,12 -
