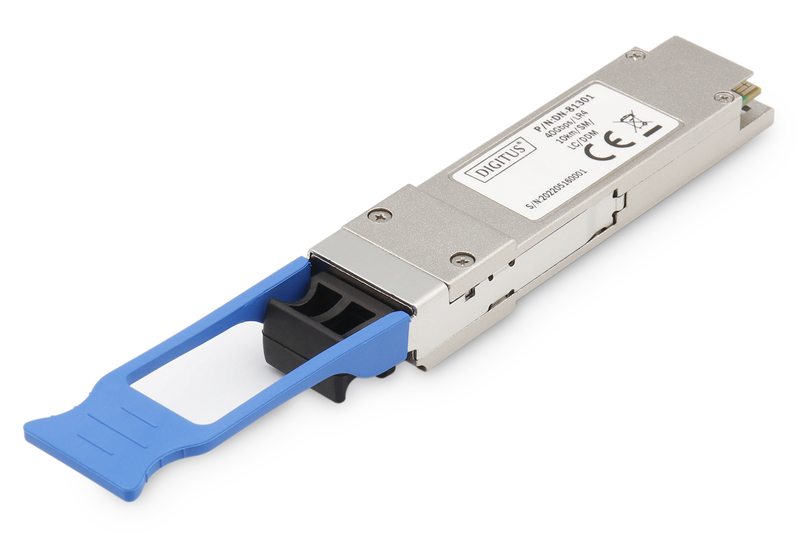

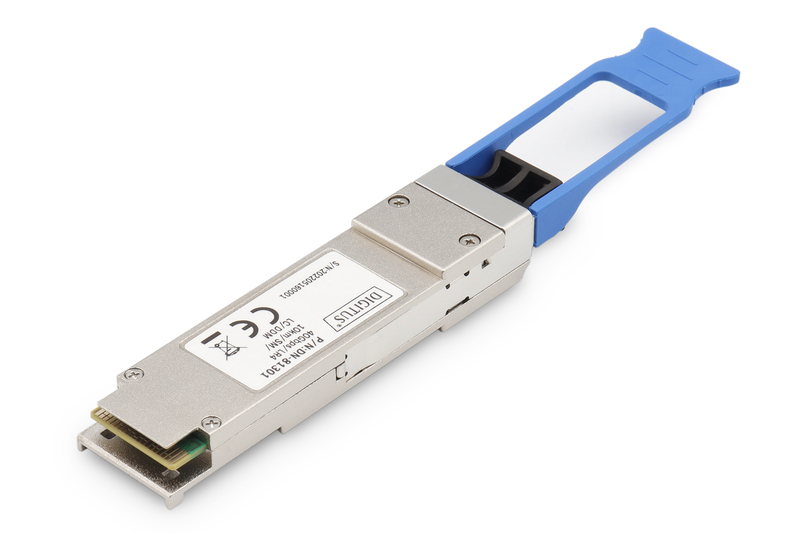

QSFP 40 Gbps Module, Singlemode, 1310nm, 10Km MPO Connector, OM3

The plug and play fiber connection

• The Plug & Play fiber optic link enables quick installation
• Sends data in high quality and additionally provides excellent reliability
• Distance up to 10km at a maximum data rate of 40 Gbps
• Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Technical Details

• QSFP+ module
• Compatible with the following manuafacturers: Ubiquiti, Allied Telesis, Allnet, CISCO, D-Link, Edimax, Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE , Avaya , Mikrotik , ENTERASYS, FINISAR, FORCE 10 ,RIVERSTONE , Fortinet

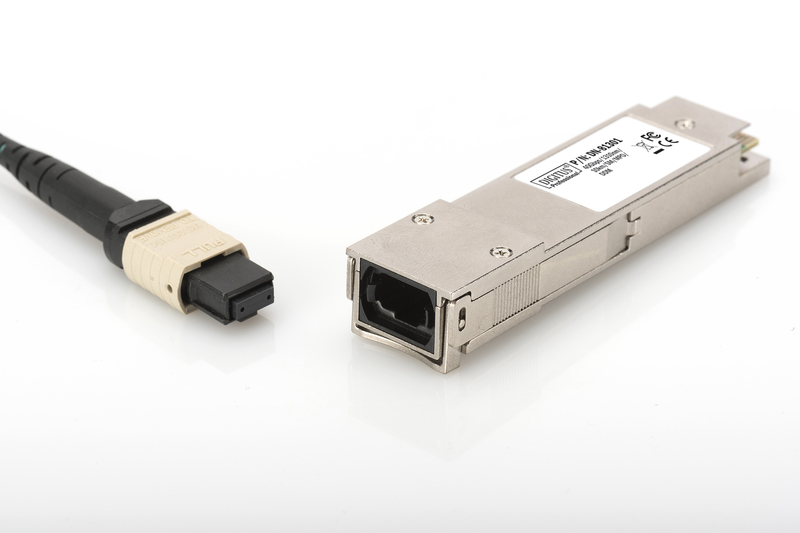

• Connector: 1x MPO
• Wavelength: 1310nm, Singlemode
• 40 Gbps Maximum Data Rate
• Transmission power: minimum -7 dBm, maximum 2.3 dBm
• Sensitivity Receiving Power: Minimum -11.5 dBm
• For a Distance of up to 10km: Singlemode OS1 or OS2
• Safe fast-locking mechanism
• Supports DDM (Digital Diagnostic Monitoring)
• High quality and excellent reliability
• Compliant to IEEE 802.3ba 40 Gigabit Standard
• Class 1 laser product compliant with EN 60825-1
• Easy plug-and-play installation
• MSA (Multi Source Agreement) compliant
• Hot pluggable
• 3.3V power supply
• Suitable for OS2 singlemode fiber cables
• Operating temperature: 0 °C ~ 70 °C
• Broadcasting Mode: Unidirectional
• Manufacturer compatibility: Universal (MSA), Cisco
• Connector: MPO
• DDM Support: yes
• Distance (km): 10
• Mode: Singlemode
• Ethernet speed: 40 Gigabit
• Wavelength: 1310 nm

Package content

• QSFP+ module
