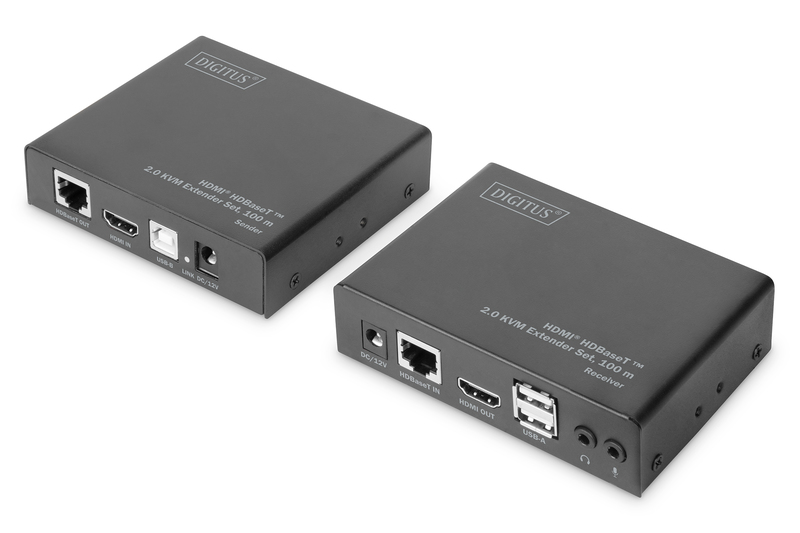

HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB

Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data

• Transmit high-resolution multimedia content without a loss of quality and uncompressed over distances of up to 100 m
• Saves unnecessary cable relocation and pools multimedia signals along with many other signals in a single network cable
• Forwarding without loss of quality through transmission of uncompressed data
• Supports HDBaseT™ 2.0 via CAT5e/6/7/8 cable up to 100 m
• Supports transmission of video, audio and USB signals via network cable
• Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)

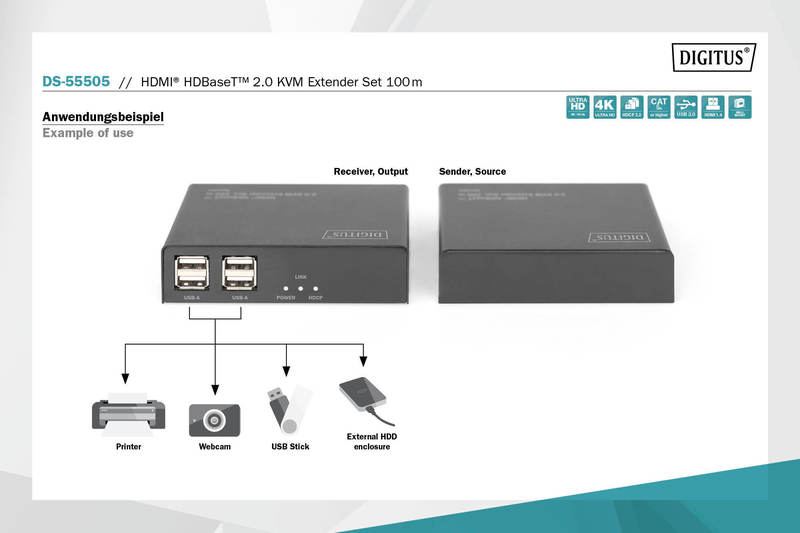

• Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
• Supports CEC (Consumer Electronics Control)
• Supports uncompressed audio transmission (LPCM7.1)
• Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)

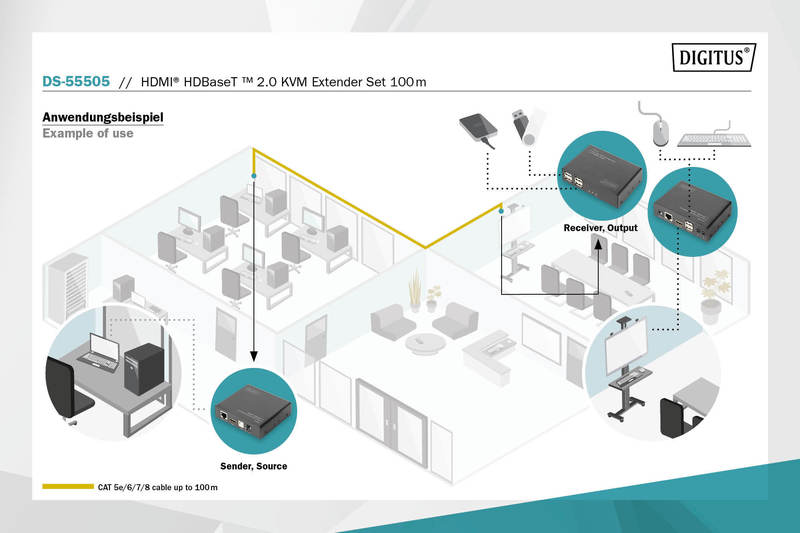

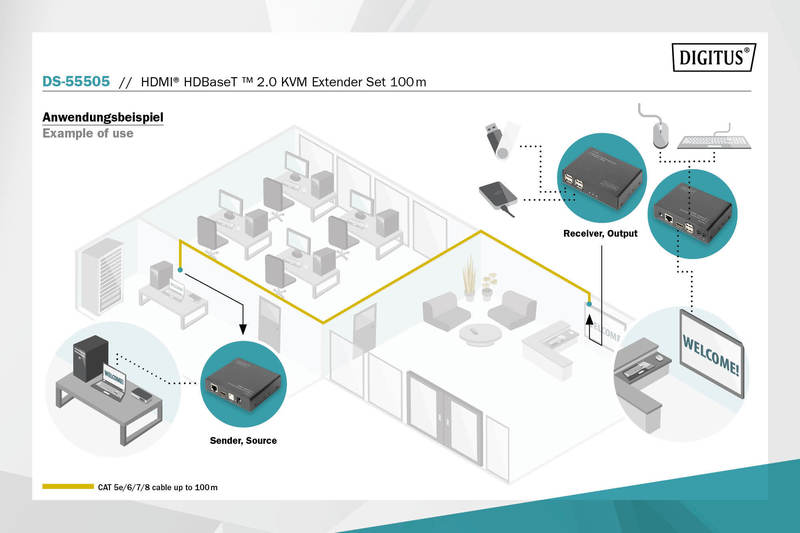

With the DIGITUS® HDMI® HDBaseT™ 2.0 KVM Extender Set, you can control your source device at a distance of up to 100 meters using a single CAT5e/6/7/8 cable connection with uncompressed 4K-HDMI™ video content and access to up to 6 connected USB devices. This extender was specially developed for smooth and easy setup. HDBaseT™ 2.0 enables installation using a single cable, avoiding the laborious relocation of multiple cables. A typical application would be a multi-room solution in which the source device and display can be at a distance of up to 100 m. From the receiver, you can use up to 6 USB devices that are connected to the transmitter module, and of course you can enjoy video and audio content. A very easy KVM functionality when it comes to installation and application. Instead of relocating multiple cables, use a single RJ45 network cable or the existing network connections (point-to-point) with the HDMI® HDBaseT™ 2.0 Extender from DIGITUS®.

Technical Details

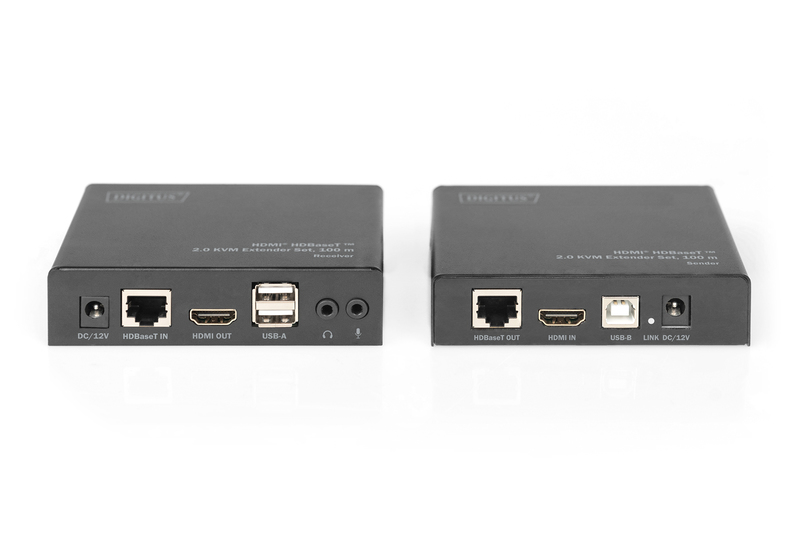

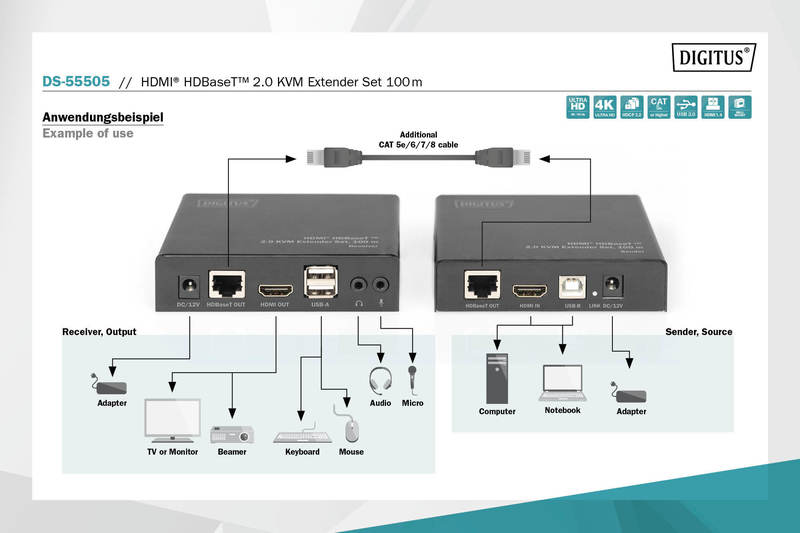

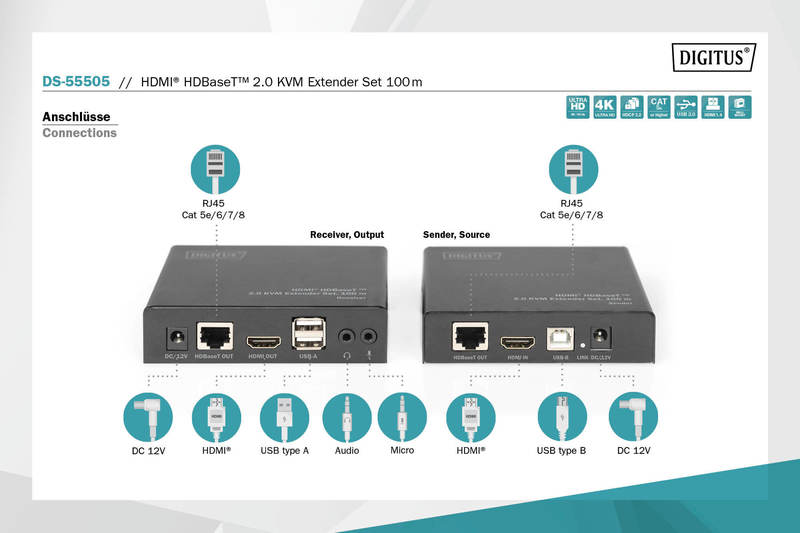

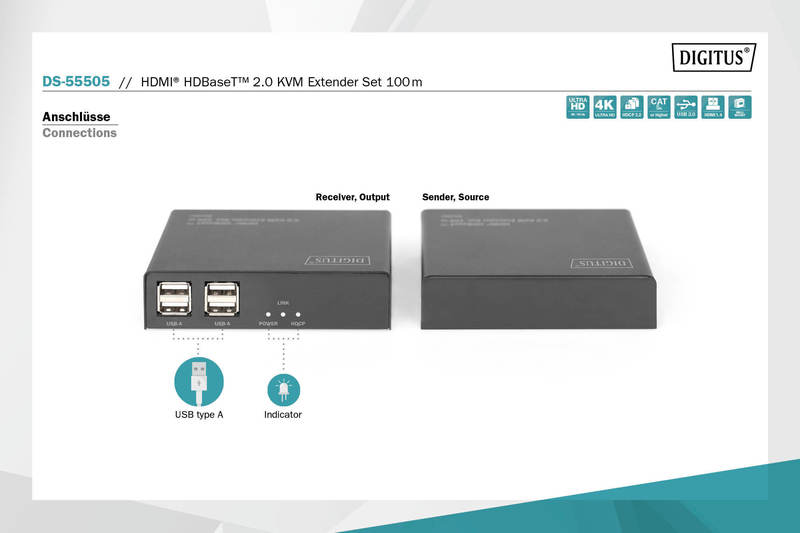

• Inputs: 1 x HDMI™, 1 x USB B

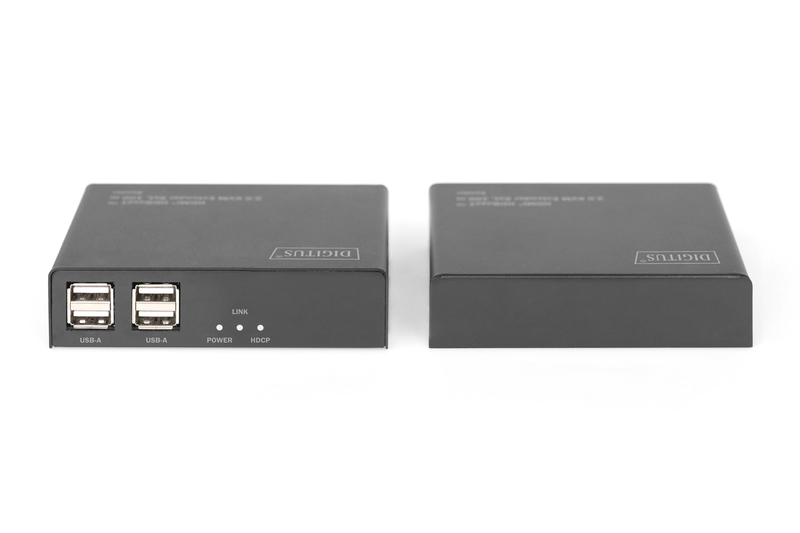

• Outputs: 1 x HDMI™, 6 x USB A
• HDMI® bandwidth: 10.2 Gbps
• HDCP version: 2.2
• HDMI version: 1.4
• Color depth: 36-bit total (12-bit per channel)
• Uses HDBaseT™ 2.0 technology (VS2310)
• Supports Full 3D, 1080p, 4K@30/60Hz
• Supports sub-sampling: 4:2:0
• Supports HDBaseT™ 2.0 via CAT5e/6/7/8 cable up to 100 m
• Supports USB 2.0 features (Hi-Speed)
• Supports CEC (Consumer Electronics Control)
• Supports uncompressed audio transmission (LPCM7.1)
• Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
• Supported resolutions (interlaced): 480i, 576i, 1080i
• Supported resolutions (progressive): 480p, 576p, 720p, 1080p, 4K (4096x2160@24Hz, 3840x2160@60/30Hz)
• Operating temperature: 0 °C to +40 °C
• Operating humidity: 5% to 90% RH (non-condensing)
• Power consumption transmitter: 3 W
• Power consumption receiver: 7 W
• Power adapter: Input: 100 - 240 V AC / 0.65 A – Output: 12 V / 2 A
• Cable length power adapter: 1.2 m
• Dimensions transmitter: W 13 x D 10 x H 2.5 cm
• Dimensions receiver: W 11 x D 8 x H 2.8 cm
• Weight: 212 g (transmitter), 240 g (receiver)
• Housing: Metal
• Video connection ports: HDMI
• KVM: yes
• PoE (Power over Ethernet): no
• Distance: 100 m
• HDTV Resolution max.: 3840 x 2160 Pixel, 60Hz
• Category: CAT 5e
• Transmission technology: CAT

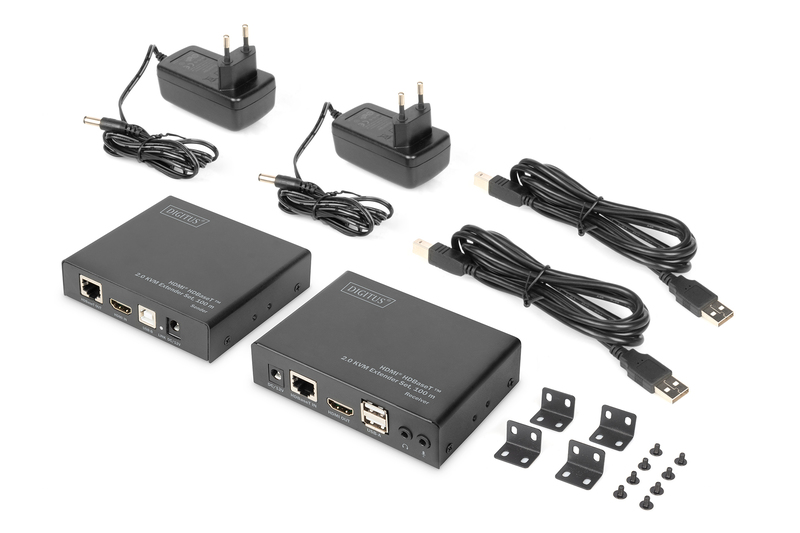

Package content

• 1 x HDMI® HDBaseT™ 2.0 KVM Extender Set
• 2 x Power adapter 12 V / 2 A
• 1 x USB Connection cable 1.5 m
• 4 x Installation bracket for wall mounting
