4K HDMI Extender over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), Receiver Unit

Expand the 4K HDMI Extender via CAT / IP Set (DS-55122) with additional receiver units (DS-55123) and distribute your HDMI signals to up to 253 screens (IP connection)

• Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
• Extends 4K video content to up to 120 m with a CAT 6 cable (point-to-point connection)
• Signal extension (unlimited distance) via the existing local network infrastructure (IP connection)
• Supports 4K (30Hz), 3840x2160p resolution
• Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
• HDMI bandwidth: 10.2 Gbit/s (max.)
• Supports HDCP 1.4

Extend the 4K HDMI Extender via CAT / IP Set with additional receiver units (DS-55123). The Extender Set (DS-55122) is a high-performance video distribution system consisting of a transceiver unit. It extends 4K HDMI signals to up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use a network switch and the individual receiver units (DS-55123) to distribute your video content to up to 253 displays via the already existing network (IP connection). The additional integrated unidirectional IR interface allows a remote control of the input source.

Technical Details

• Use additional receiver units (DS-5513) and your existing network infrastructure to display your video content on up to 253 screens (via IP connection)
• Extends 4K video content to up to 120 m with a CAT 6 cable (point-to-point connection)
• Signal extension (unlimited distance) via the existing local network infrastructure (IP connection)
• Supports 4K (30Hz), 3840x2160p resolution
• Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
• HDMI bandwidth: 10.2 Gbit/s (max.)
• Supports HDCP 1.4
• Integrated unidirectional IR interface - easy remote control of the input source
• Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Supports: 3D, HDTV
• Supports Deep Color (24bit)
• Supports uncompressed audio signals such as LPCM
• Operating temperature: 0°C - 60°C
• Metal housing
• Compact size, simple use and installation

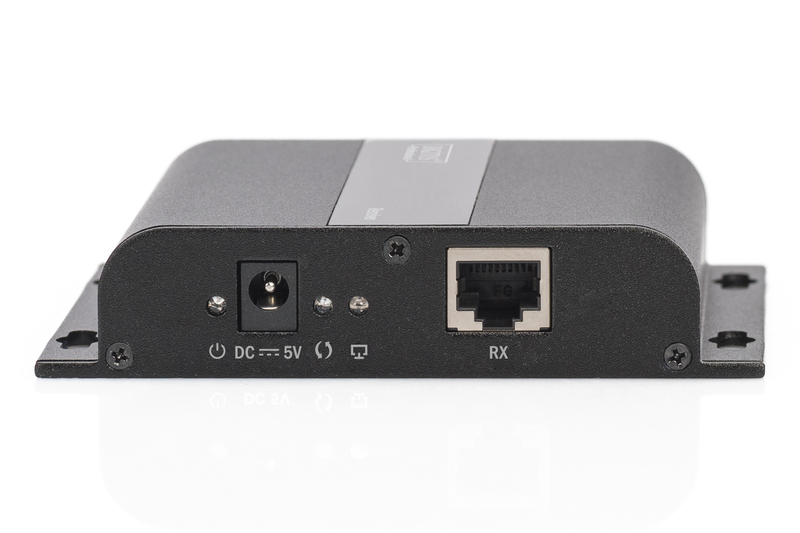

• Power supply: DC 5V/2A
• Dimensions (1x unit): L 11.0 x B 9.4 x H 2.4 cm
• Weight (1x unit): 0.2 kg
• Color: Black

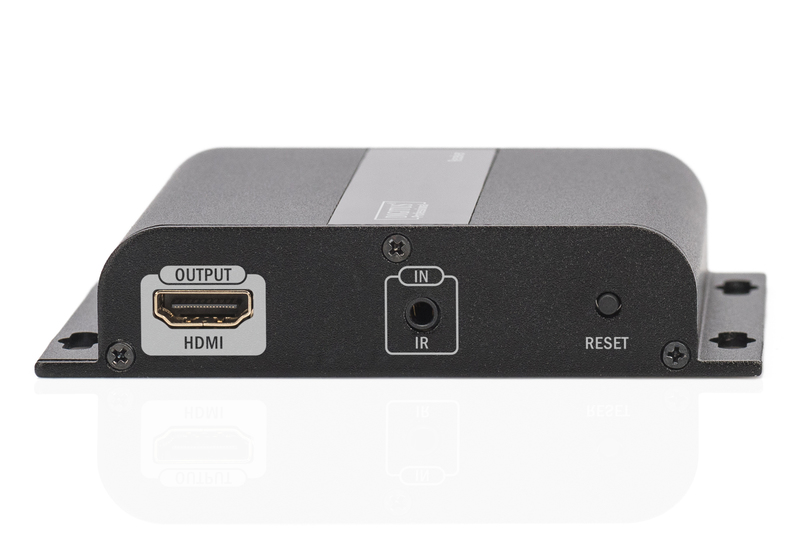

• Video connection ports: HDMI
• KVM: no
• PoE (Power over Ethernet): no
• Distance: 120 m
• HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz
• HDTV Standard: Ultra HD 4K
• Category: CAT 5e
• Transmission technology: CAT, IP

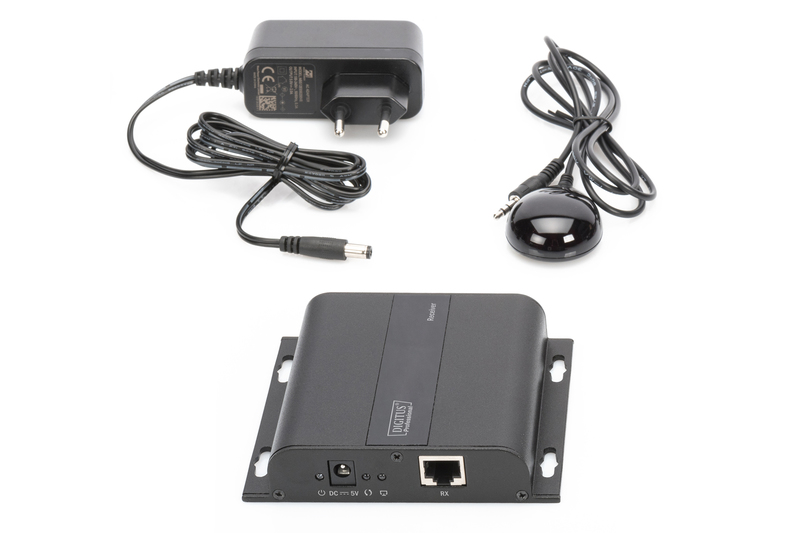

Package content

• 1x HDMI Extender receiver unit
• 1x IR receiver unit
• 1x Power supply unit: DC 5V/2A
• Manual
