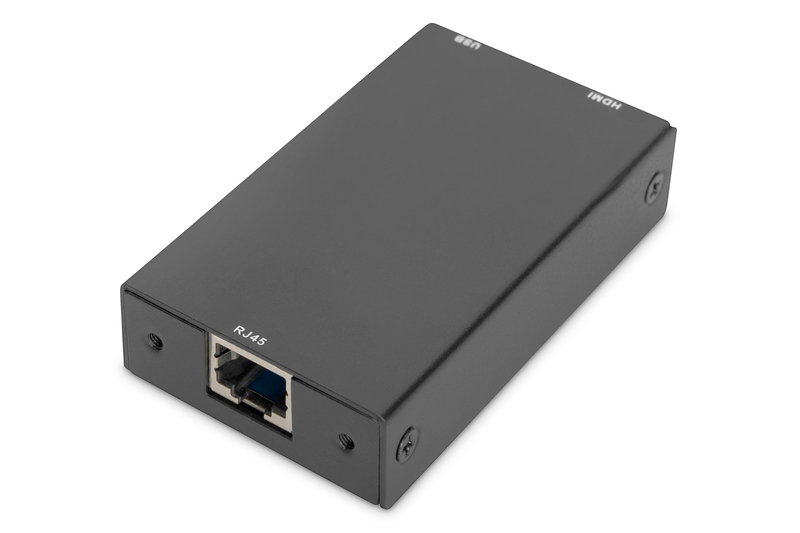

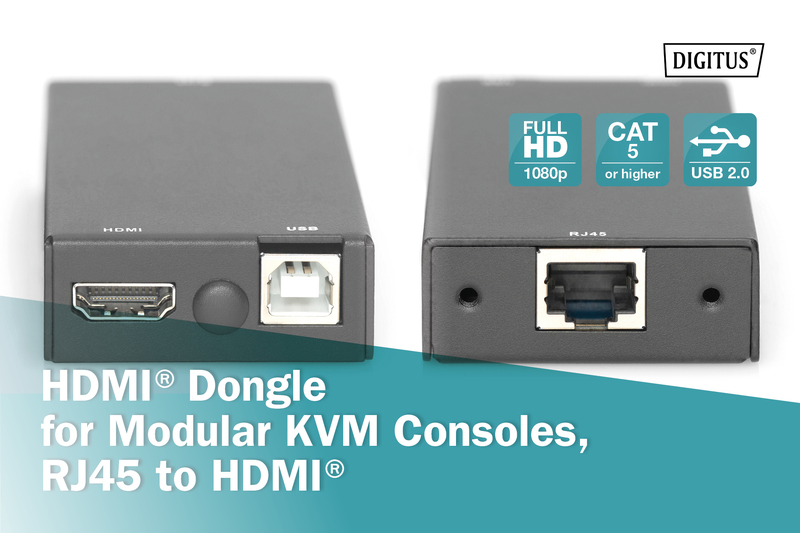

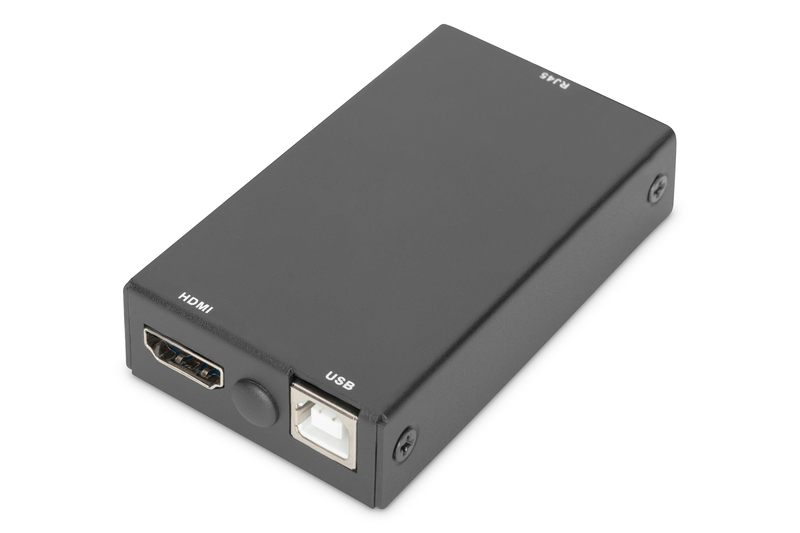

HDMI Dongle

Establishes a remote connection via network cable to a target computer with HDMI connection

• Use a single network cable to remote control computers
• Ranges of up to 60 m possible
• A network cable in cat. 5 / 5e / 6 / 6A or higher replaces expensive KVM cables
• Ideal for servers or inaccessible computer systems
• Works independently of the operating system

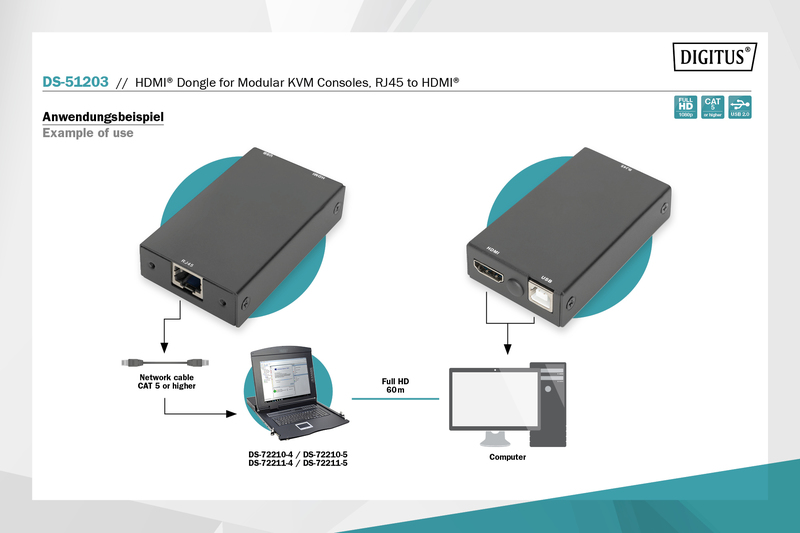

The DIGITUS® HDMI dongle for modular KVM consoles enables the remote control of a target computer via a single network cable in categories 5, 5e, 6, 6A or higher with RJ45 plug. It connects the KVM switch with the USB and HDMI jack of the target computer at ranges of up to 60 m in Full HD resolution. Ideal application for inaccessible server or computer systems. Power supply is provided through the USB connection of the connected device. No need for expensive KVM cables, use a single network cables to remotely control the computer of your choice with an HDMI connection.

Technical Details

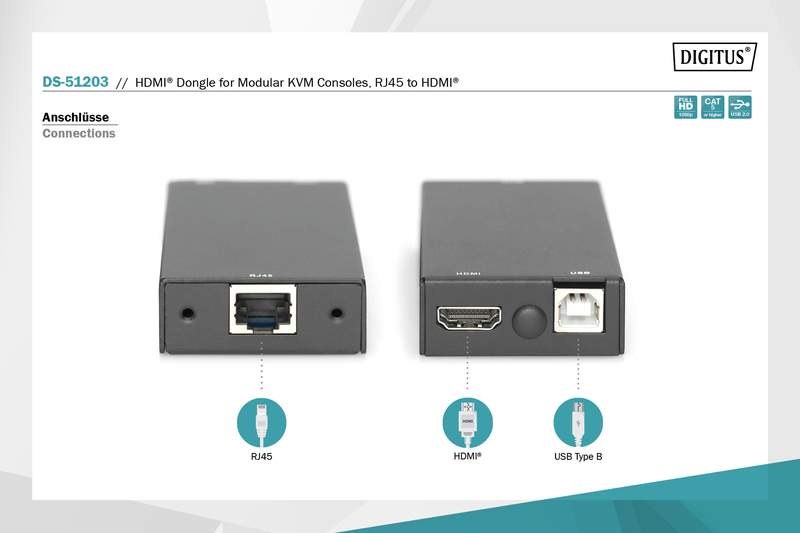

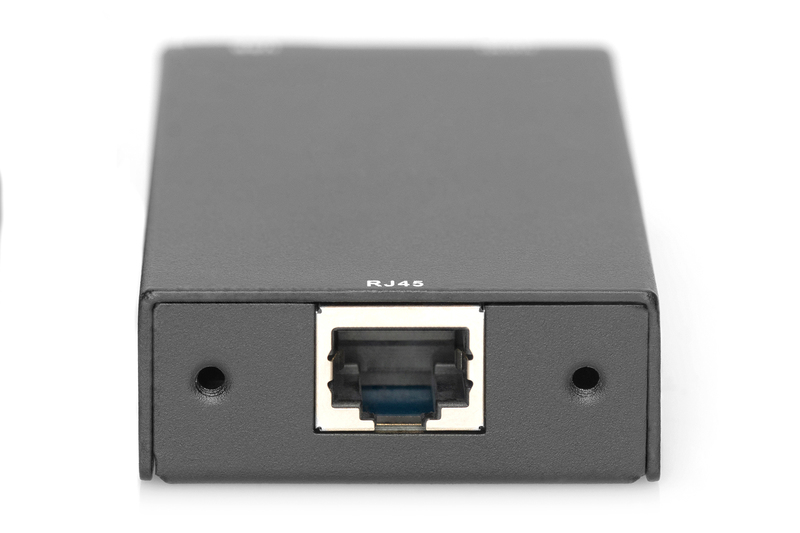

• KVM console connection: 1 x RJ45

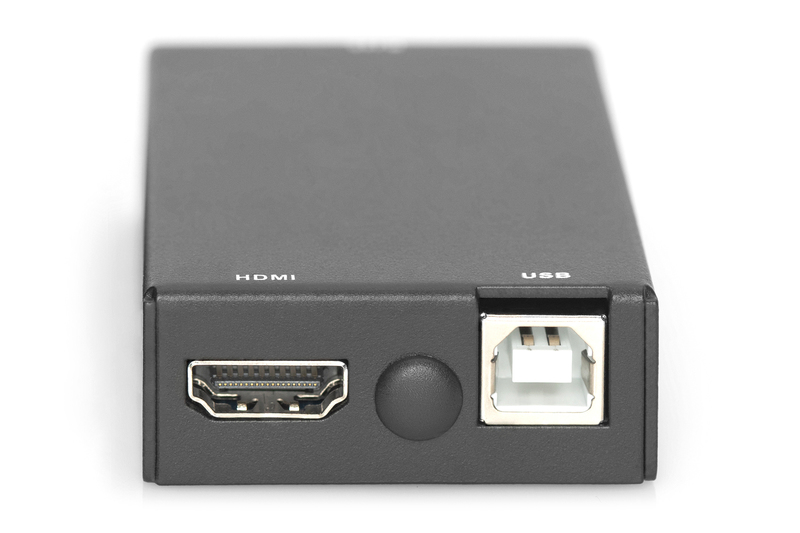

• Connection target computer: 1 x USB A, 1 x HDMI
• Video resolution: 1920 x 1080p max.
• Additional resolutions: 480P, 600P, 720P, 768P, 800P, 900P, 960P, 1024P, 1080P
• Maximum range: 60 m max.
• Operating systems: Can be used independently of the operating system
• Compatible with DIGITUS KVM series: DS-72210-4, DS-72210-5, DS-72211-4, DS-72211-5
• Power supply is provided via the target computer (USB)
• Operating temperature: 0°C to 50°C
• Operating humidity: 0% - 80% RH (non-condensing)
• Dimensions: 85 x 48 x 19 mm (LxWxH)
• Housing: Metal
• Weight: 120 g
• Number of ports: 1
• Connectors KVM side: RJ45 jack, CAT 5 Installation
• Interface: CAT 5

Package content

• 1 x HDMI dongle for modular KVM consoles, RJ45 to HDMI
• 1 x Quick installation guide
