Fluke Pro3000 - Analog Tone and Probe

ACT-PRO 3000
EAN 4016032291275

Print version
  • Description

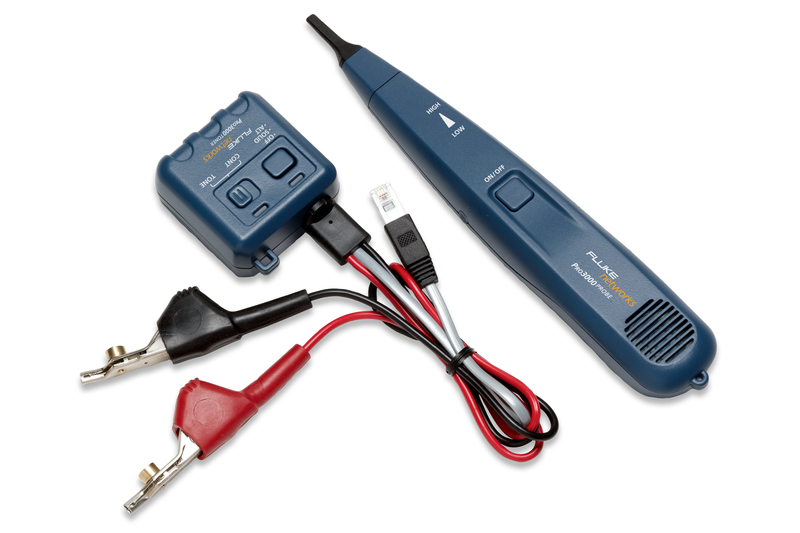

    Pro3000 Analog Tone & Probe Kit

    Cable verification at a higher level

    The Pro3000 Analog Tone and Probe are your best choice for toning and tracing wire on non-active networks, and specifi¬cally for identifying individual pairs with SmartTone™ technology

    Technical Details

    • Area of application: Toning and tracing wire on non-active networks
    • General properties:
    • Toner dimensions: 6.9 x 6.1 x 3.6 cm
    • Probe dimensions: 24,9 x 4,1 x 3,3 cm
    • Battery: Alkaline, 9V
    • Life of battery: Up to 20 hours of typical use
    • Technical properties:
    • Frequency: 1000 Hz nominal
    • Atternating frequency: 1000/1500 Hz nominal
    • Over voltage protection: 60V DC in toner/polarity mode
    • Output voltage level in continuity mode: 8V DC
    • Operating temperature: -20 °C to +60 °C
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton42,3023,0038,0035,0030590,00
    Packaging Unit Inside10,588,5018,0031,004743,00
    Packaging Unit Single10,588,5018,0031,004743,00
    Net single without Packaging10,438,5018,0031,004743,00

1/10
<
>
