DIGITUS Hirose modular plugs TM31 for round cable, CAT 6A
A-MO6A 8/8 HRS
EAN 4016032272144
| Print version | |
|---|---|
| Datasheet English | |
| Datasheet German |
-
Description

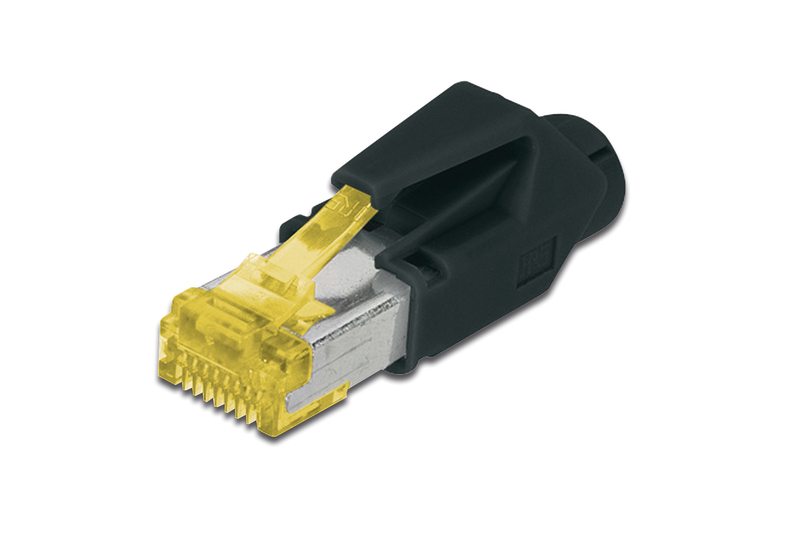

CAT 6A modular RJ45 Plug, Hirose TM31 8P8C, shielded, for round cable, incl. hood
These modular plugs can be used to establish quick and simple connections.
Technical Details
- Layout performance: CAT 6A, 10GBase-T
- Area of application: Patch cable assembly
- General properties:
- Fully shielded with strain relief for installation cables
- Incl. comb
- Technical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.8 μ gold-plated
- Material shielding housing: Brass 0.5 mm, 2 μ nickel-plated
- Flammability: UL 94V-2
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Diameter Cu-Conductor: AWG (27/7 ... 24/7)
- Operating temperature: -20 °C to +60 °C
- Current carrying capacity: 1A at 50 °C
- Diameter outer jacket: 5,5 ... 6,2mm
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 50 0,31 22,00 22,00 9,00 4356,00 Packaging Unit Inside 10 0,06 13,00 18,00 2,50 585,00 Packaging Unit Single 1 0,01 7,00 12,00 0,50 42,00 Net single without Packaging 1 -0,01 7,00 12,00 0,50 42,00 -
