DIGITUS Hirose Modular Plug, CAT 6 TM 21
A-MO6 8/8 HRS
EAN 4016032132943
| Print version | |
|---|---|
| Datasheet English | |
| Datasheet German |
-
Description

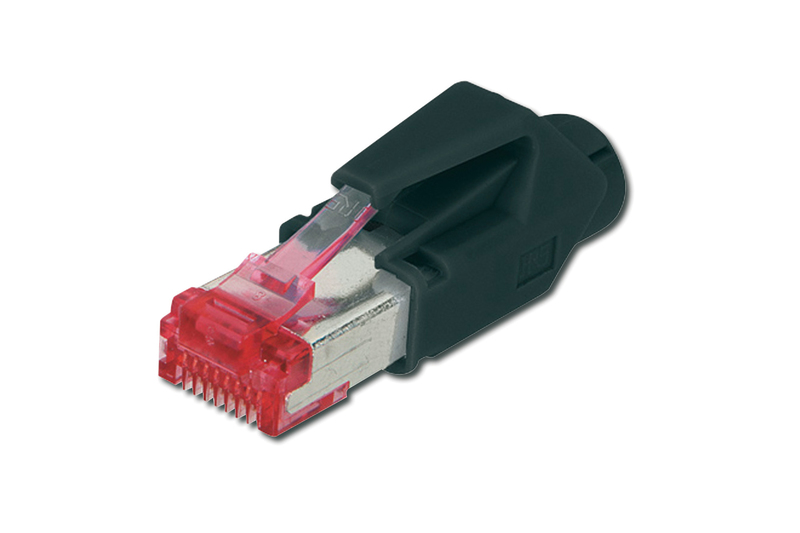

CAT 6 modular RJ45 plug, Hirose TM21 8P8C, shielded, for round cable, incl. hood
These modular plugs can be used to establish quick and simple connections.
Technical Details
- Easy assembly by modular crimping tool DN-94008
- Layout performance: CAT 6, 1GBase-T
- Area of application: Patch cable assembly
- General properties:
- Fully shielded with strain relief for installation cables
- Incl. comb
- Technical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.8 μ gold-plated
- Material shielding housing: Brass 0.5 mm, 2 μ nickel-plated
- Flammability: UL 94V-2
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Diameter Cu-Conductor: AWG (27/7 ... 24/7)
- Operating temperature: -20 °C to +60 °C
- Current carrying capacity: 1A at 50 °C
- Diameter outer jacket: 5,5 ... 6,2mm
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1 0,01 3,00 1,50 11,00 49,50 Packaging Unit Inside 1 0,01 3,00 1,50 11,00 49,50 Packaging Unit Single 1 0,01 3,00 1,50 11,00 49,50 Net single without Packaging 1 -0,01 3,00 1,50 11,00 49,50 -
