DIGITUS Network Tool Set Topseller

DN-94022
EAN 4016032348849

Print version
Datasheet ENG
Datasheet GER
  • Description

    Network Tool Set, LAN Tester, Crimping Tool, Cut and Stripping Tool, Punch Down Tool, Bag

    All necessary tools for field installation in one set.

    • All necessary tools for field installation in one set
    • Safely packed in a textile bag
    • Handy design - take it everywhere easily

    If you need a network tool set for field service the DIGITUS® Network Tool Set fits your needs. The tool set is ideal for fault diagnostics, testing and for new installations.

    Technical Details

    • Area of application: For fault diagnostics, tests and new installations in network
    • General properties:
    • Suitable for 6P4C- and 8P8C plugs
    • Quick and easy installation
    • Ergonomic handle
    • Robust metal design
    • Network and Tester:
    • Battery: 9V alkaline
    • Main device connector: 2x RJ45 female
    • Remote-device connector: 1x RJ45 female
    • Ideal for testing RJ11, RJ12 and RJ45 plugs
    • Separate display for PIN 1-8 and ground
    • For continuity testing of network- or communication cables
    • Automatic test run
    • Punch tool:
    • Suitable for LSA-strips
    • Cable insulation and cutting off extending cable ends
    • Includes extraction- and unlocking device
    • Cut and stripping tool:
    • Suitable for CAT 5e, CAT 6, CAT 7 (Ø > 2-10 mm)
    • Adjustable cutting depth

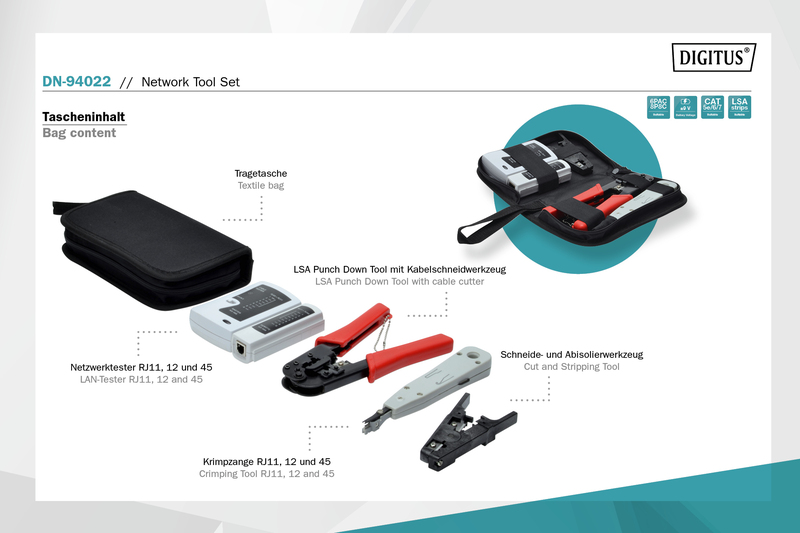

    Package content

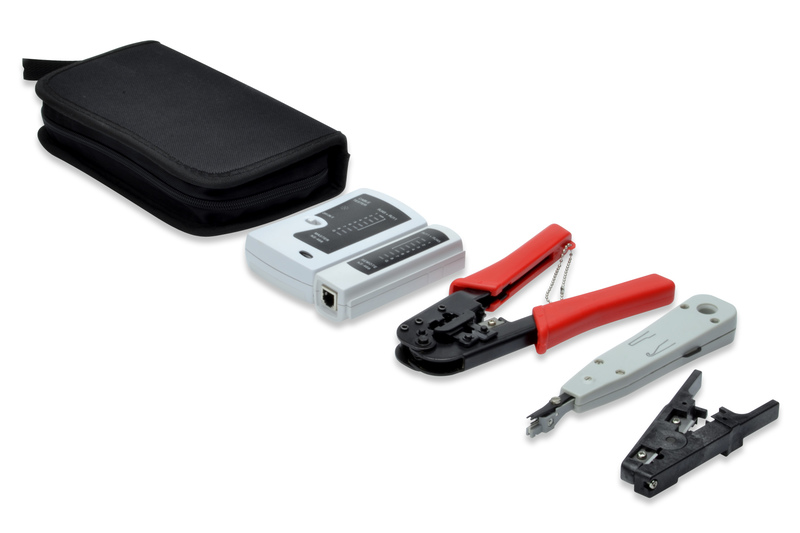

    • LAN-Tester RJ11, 12 and 45
    • LSA Punch Down Tool with cable cutter
    • Crimping Tool RJ11, 12 and 45
    • Cut and Stripping Tool

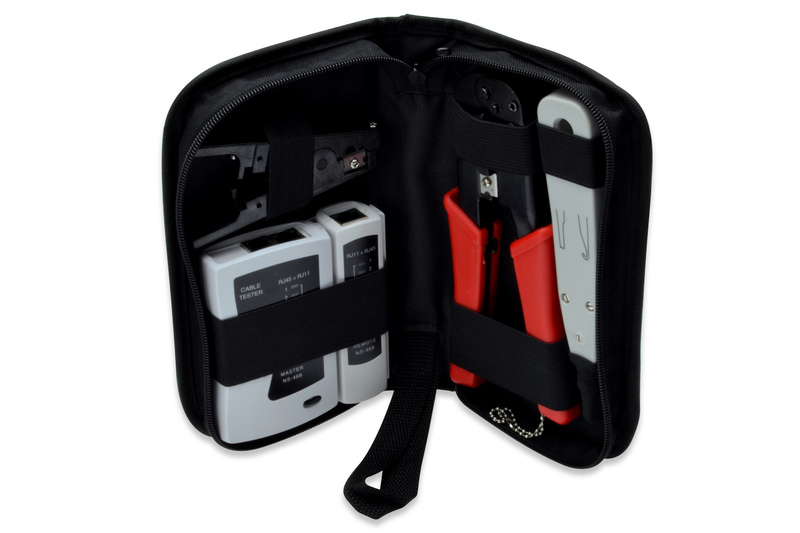

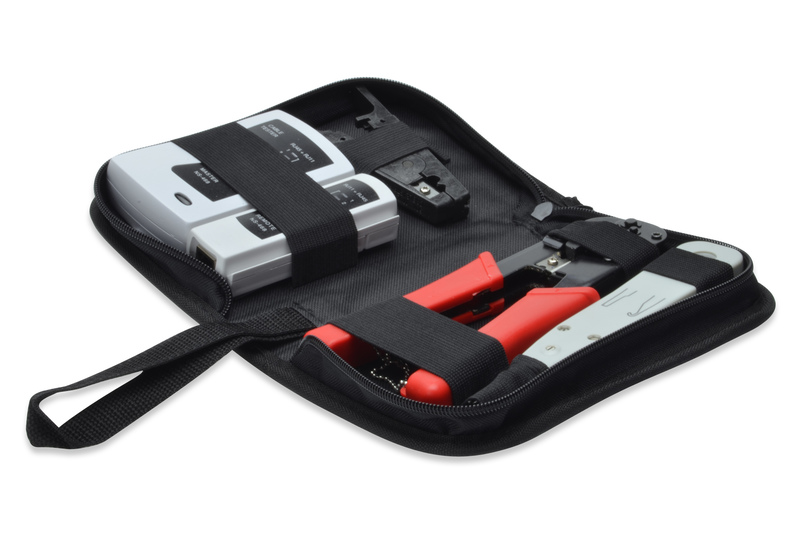

    • Textile bag
    • excluding battery for Network Tester (9V bloc cell)
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton2517,0050,0030,0025,0037500,00
    Packaging Unit Inside10,685,0021,5012,001290,00
    Packaging Unit Single10,685,0021,5012,001290,00
    Net single without Packaging10,685,0021,5012,001290,00
