DIGITUS Modular plugs for round cable, CAT 5e
A-MO 8/8 SRS
EAN 4016032065180
| Print version | |
|---|---|
| Datasheet English | |
| Datasheet German |
-
Description

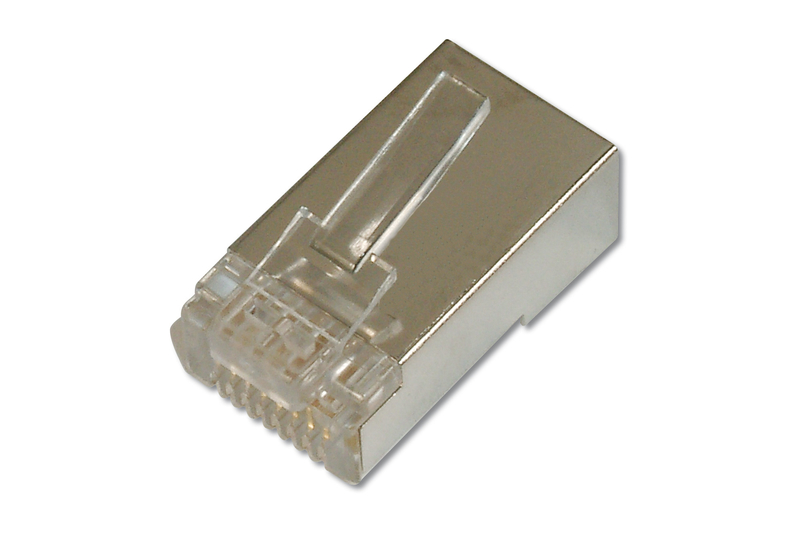

Modular Plug, for round cable, 8P8C, CAT 5 shielded
These modular plugs can be used to establish quick and simple connections.
Technical Details
- Layout performance: CAT 5e, 10/100Base-T, 1GBase-T
- Area of application: Patch cable assembly
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- UL certified
- Technical properties:
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
- Flammability: UL 94V-2
- Physical properties:
- Insertion force: ≤ 30 N
- Diameter Cu-Conductor: AWG (27/7 ... 24/7)
- Operating temperature: -40 °C to +80 °C
- Current carrying capacity: 1A -1.5A at 50 °C
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 5000 14,10 41,30 38,10 20,30 31942,70 Packaging Unit Inside 100 0,28 4,00 12,00 16,50 792,00 Packaging Unit Single 1 0,00 2,20 1,10 0,70 1,69 Net single without Packaging 1 0,00 2,20 1,10 0,70 1,69 -
