DIGITUS CAT 6A Field Termination Coupler, 500 MHz
DN-93909
EAN 4016032431268
| Print version | |
|---|---|
| Datasheet DE | |
| Datasheet EN |
-
Description

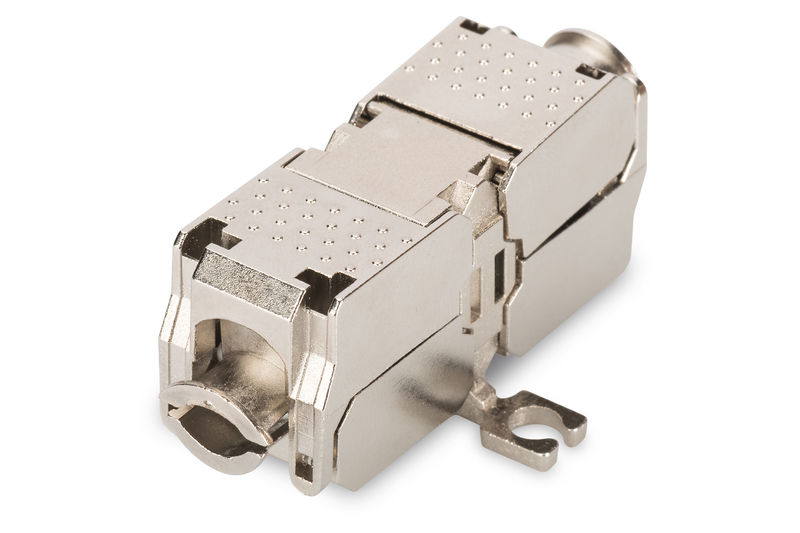

Field Termination Coupler CAT 6A, 500 MHz for AWG 22-26, fully shielded, keyst. design, 26x35x80

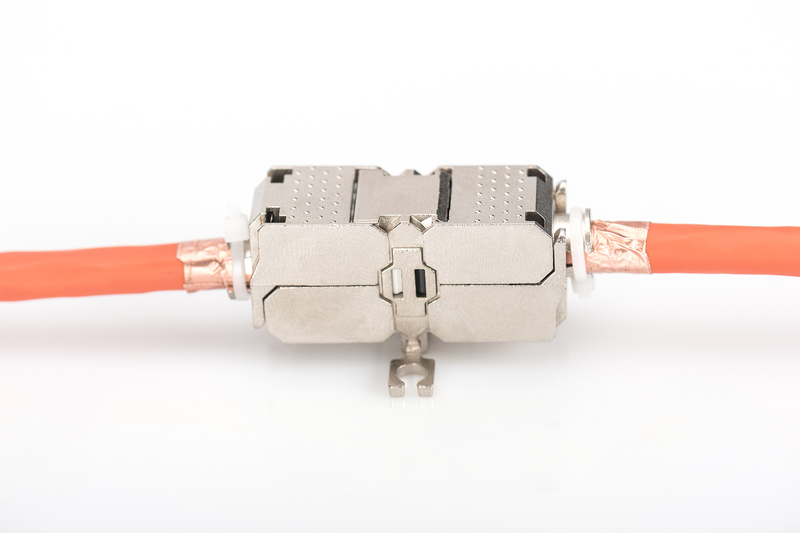

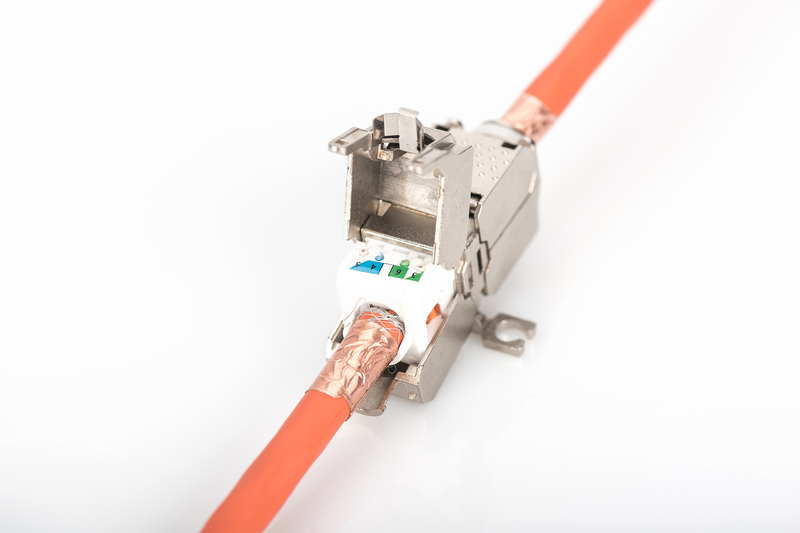

The DIGITUS Professional Field Termination Coupler is used for connecting or extending of twisted pair cables.
Technical Details
- Transmission properties: Category 6A, Class EA
- Area of application: Up to 500 MHz, 10GBase-T
- Suitable for cables with AWG 22-26 diameter
- Shell: Zinc alloy
- Contacts: Nickel-plated
- shielded
- Keystone Design
- 1 to 1
- Operating temperature: -10 °C to +60 °C
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 300 11,50 34,00 24,00 28,00 22848,00 Packaging Unit Inside 10 0,38 15,00 14,00 5,00 1050,00 Packaging Unit Single 1 0,04 9,00 8,00 3,00 216,00 Net single without Packaging 1 0,04 9,00 8,00 3,00 216,00 -
