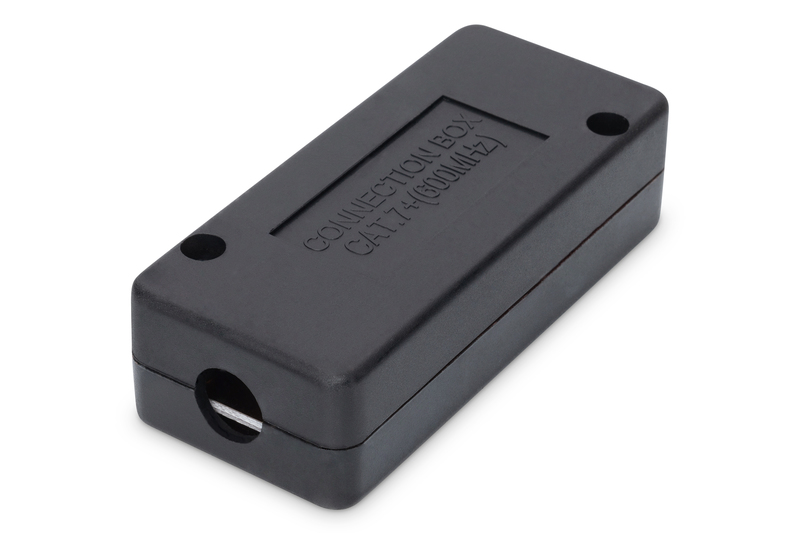

Junction Box CAT 7, 600 MHz, LSA strips for AWG 22-26, fully shielded,comp. design,26x35x80mm

The DIGITUS® Junction Box CAT 7 serves as a tool for connecting of shielded data cables. Use the Junction Box for an extension of your cabling or to replace broken cables by re-connecting without installing a whole new segment. For an easy and fast installation, the cable connector uses the established LSA technique with 45° tilt of the contacts.

Technical Details

• Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
• General properties:
• Suitable for installation in trunking, surface and flush mount
• Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
• Suitable for connection of installation cables - extension of cables, replacing of defect cable links
• Integrated strain relief for installation cables
• Suitable for cables with AWG 22-26 diameter
• Technical properties:
• Housing material: ABS UL-94V-0
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
