DIGITUS CAT 6A modular couplers, shielded
DN-93905
EAN 4016032291824
| Print version | |
|---|---|
| Datasheet PL |
-
Description

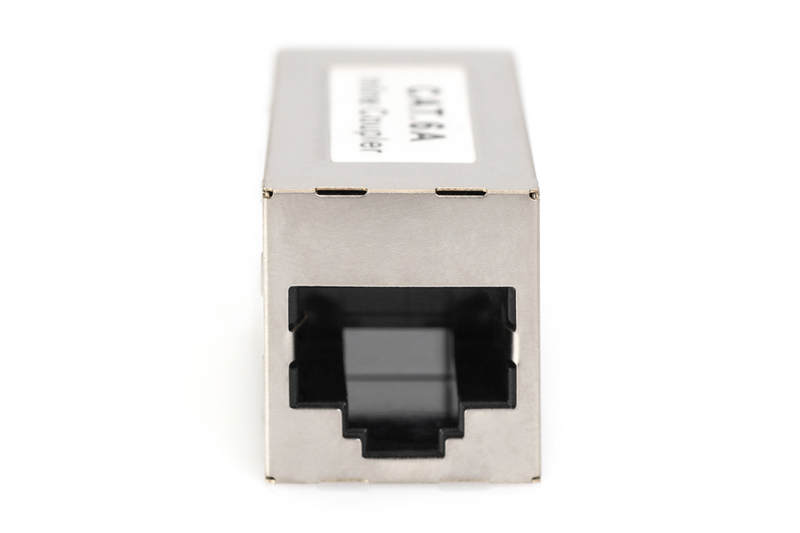

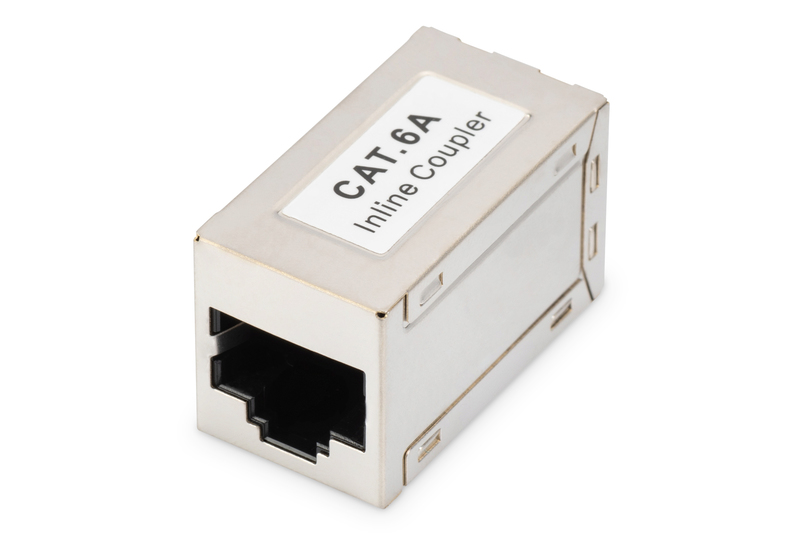

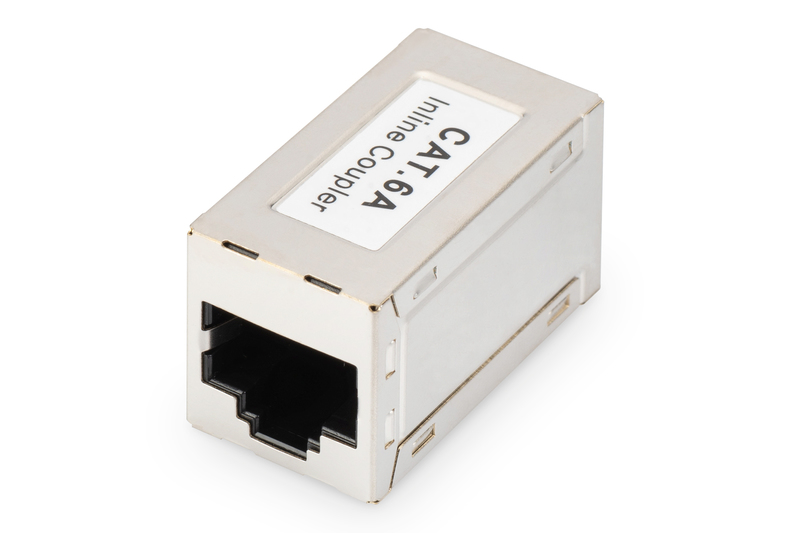

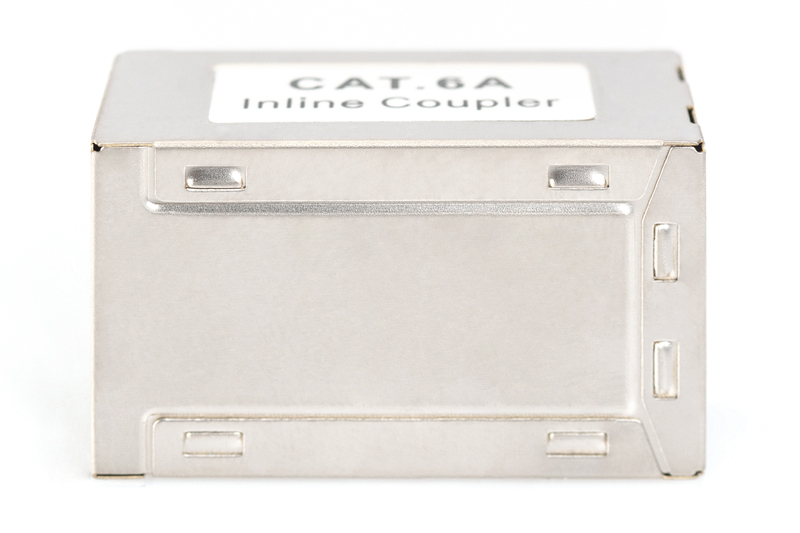

CAT6A modular coupler, full shielded RJ45 to RJ45
Corresponds with requirements channel performance Class EA ISO/IEC 11801 for up to 500 MHz
Technical Details
- 2 x RJ-45 female
- Assignment: 1:1
- Shielded version
- Material enclosure: Brass sheet - shining Nickel plated
- Material PCB: FR4, 1.2 mm thickness
- Material contacts: Phosphor bronze
- Contacts coating: Nickel, gold plated 0.6 µ
- Mating cycles: ≥ 750
- Operating temperature: -10 °C ~+50 °C
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 500 10,10 54,50 34,50 13,50 25383,40 Packaging Unit Inside 50 1,01 25,00 23,00 7,00 4025,00 Packaging Unit Single 1 0,02 2,00 7,00 12,00 168,00 Net single without Packaging 1 0,02 2,00 7,00 12,00 168,00 -
Downloads
Datasheet
