DIGITUS RJ45 Modular Coupler, unshielded
AT-A 8/8
EAN 4016032066569
| Print version | |
|---|---|
| Datasheet ENG | |
| Datasheet GER |
-
Description

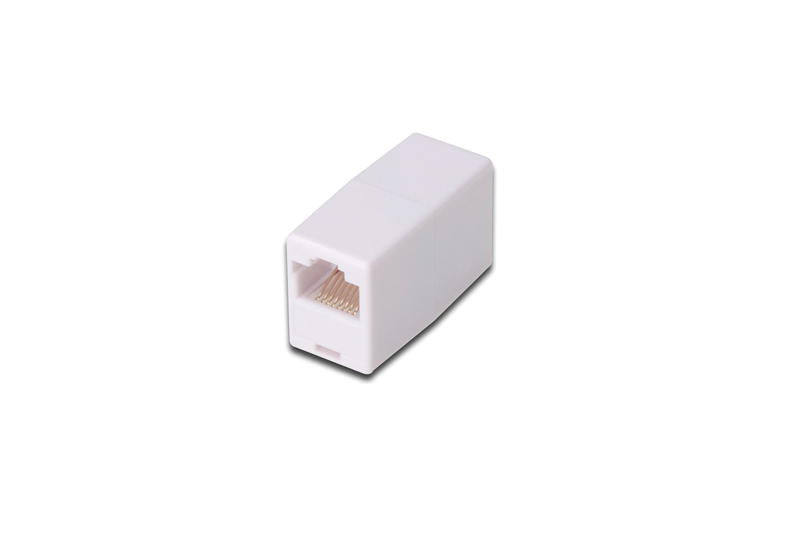

CAT 5e Modular Coupler, unshielded RJ45 to RJ45, color white
The unshielded modular RJ couplers from DIGITUS® are available as RJ12, 6P6C or RJ45, 8P8C version. The assignment is "1:1".
Technical Details
- Technical properties:
- Housing material: ABS
- Contacts coating: Nickel, gold-plated 0.5 µ
- Shielding: Tinned bronze
- Material contacts: Phosphor bronze
- Physical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
-
Logistics
Number
(pcs)Weight
(kg)Depth
(cm)Width
(cm)Height
(cm)cm³ Packaging Unit Carton 1000 9,00 44,00 32,00 28,00 39424,00 Packaging Unit Inside 100 0,90 30,00 18,00 6,00 3240,00 Packaging Unit Single 1 0,01 5,00 3,00 2,00 30,00 Net single without Packaging 1 0,00 5,00 3,00 2,00 30,00 -
