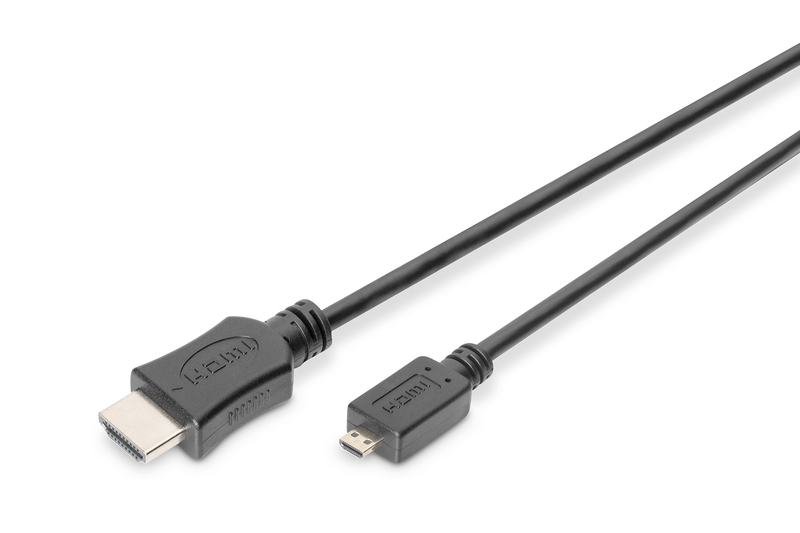

DIGITUS 4K HDMI® High-Speed Connecting Cable, Type D to Type A

DB-330109-020-S
EAN 4016032320784

Print version
  • Description

    HDMI High Speed connection cable, type D - A M/M, 2.0m, w/Ethernet, former HDMI 1.4, gold, bl

    4K/Ultra HD and 3D-enabled + Ethernet connectivity

    • Supports UHD up to 4K / 30 Hz
    • Supports 3D signal transmission
    • Supports ARC (bidirectional audio transmission) – Use a microphone and speaker using a single cable
    • Supports CEC (Consumer Electronic Control) – Control connected, compatible devices using the HDMI cable
    • Supports Lip Sync (audio/video synchronization) – Lip synchronization with audio, eliminates delayed audio output for good
    • Supports Dolby TrueHD
    • Supports Ethernet connectivity (HEC)
    • Backwards-compatible with HDMI 1.0, 1.1, 1.2, 1.3, 1.4

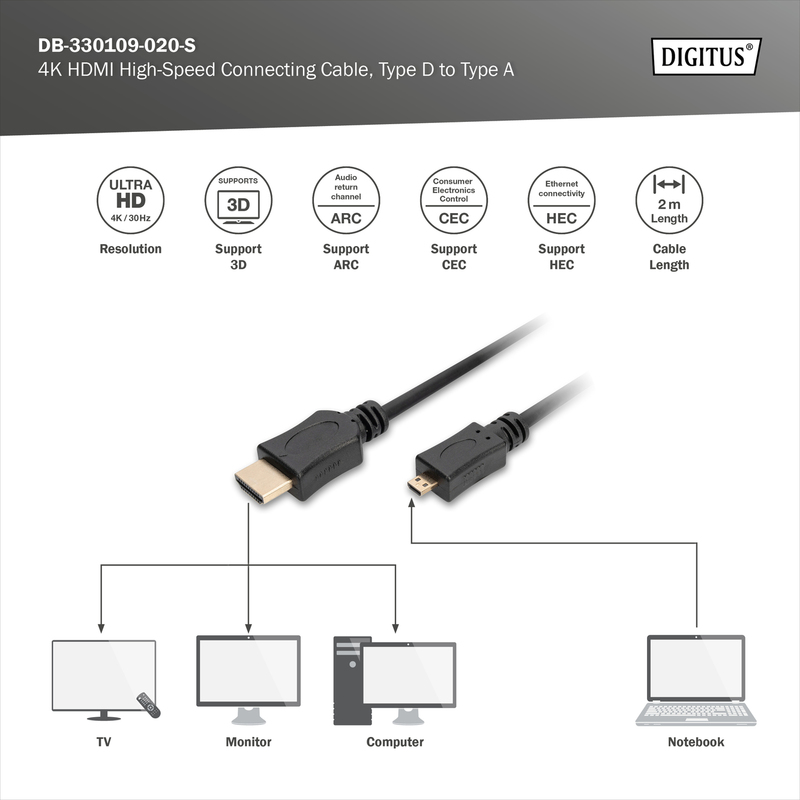

    This HD and 3D-compatible cable serves to connect audiovisual devices with HDMI Type D (Micro HDMI) interface such as notebooks to a TV, monitor or PC. With this cable standard, the high speed HDMI cable supports all current requirements – from the transmission of high-resolution UHD 4K content, also in 3D, or two-way audio transmission (ARC) and control of HDMI devices via CEC. Internet applications can also be used via the HDMI cable without the additional need to connect an Ethernet cable. Lip Sync means that delayed lip movement is a thing of the past. This cable can also be used to transmit up to 32 audio channels and enjoy image output in 21:9 CinemaScope format. Get more out of your Blu-ray player, gaming console or HD streaming portal. Gold-plated contacts and triple shielding of the cable ensure maximum conductivity and interference-free transmission.

    Technical Details

    • Supports 4K/2K with 30 Hz
    • 3D support
    • Supports audio return channel (ARC)
    • Supports Consumer Electronic Control (CEC)
    • With Ethernet channel (HEC)
    • AWG: 32
    • Connector surface: gold-plated
    • Color cable: black
    • Hoods: molded
    • Shielding: triple shielding
    • Ferrite filter: none
    • AOC - Active Optical Cable: no
    • Connector 1: HDMI type D (micro), plug
    • Connector 2: HDMI type A, plug
    • HDMI Standard: High Speed HDMI with Ethernet
    • HDTV Resolution max.: 4096 x 2160 Pixel, 30Hz
    • HDTV Standard: Ultra HD 4K
    • Length: 2 m

    Package content

    • 1 x 4K HDMI Type D to Type A High-Speed Connecting Cable
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton364,9034,0045,0028,0042840,00
    Packaging Unit Inside10,140,000,000,000,00
    Packaging Unit Single10,147,5023,505,00881,25
    Net single without Packaging10,097,5023,505,00881,25
