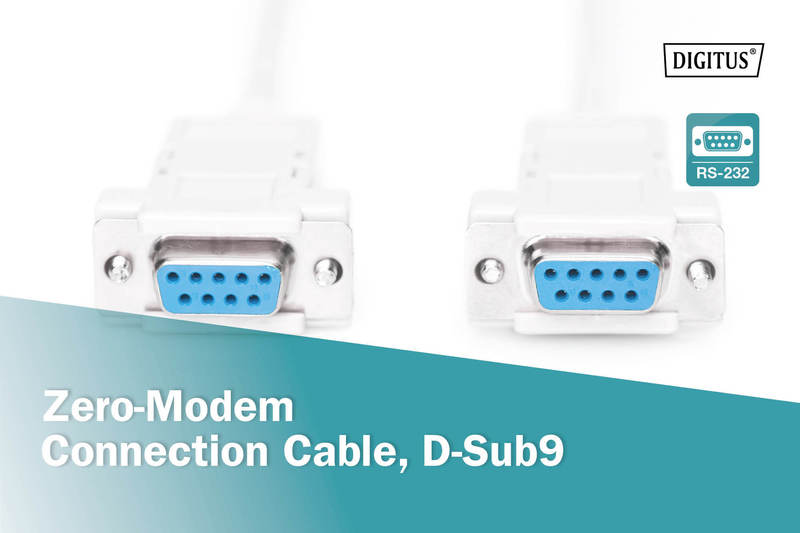

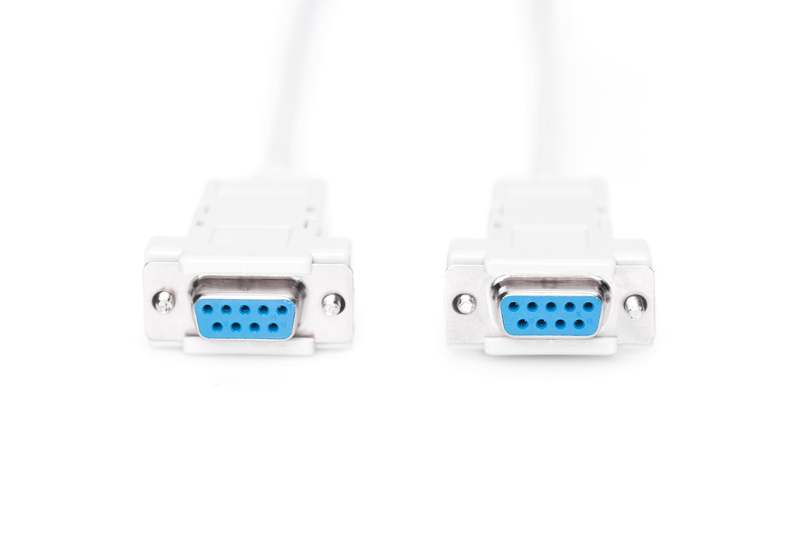

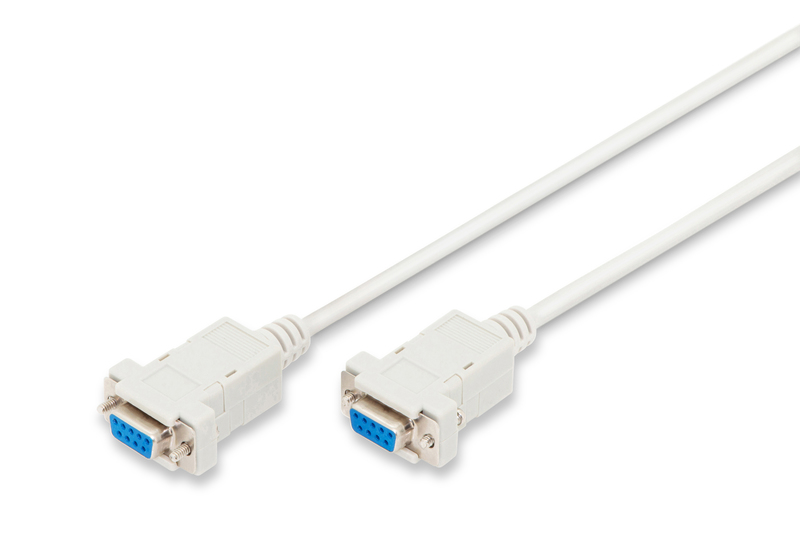

Zero-Modem connection cable, D-Sub9 F/F, 3.0m, snap-hoods, be

Enables a save and stable connection

• No inadvertent removing of connector possible

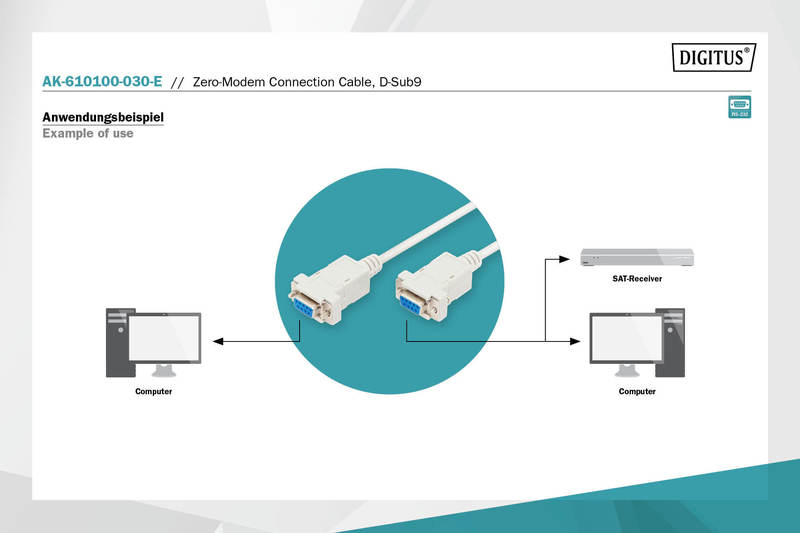

With this cable the pins are exchanged for sending and reception. Thus a direct data exchange is possible between 2 PCs or also PC and SAT-Receiver. This enables to bring the SAT-Receiver by updates on the newest state.

Technical Details

• The additional screw combination in at the entrance as well as at the exit provides by the professional application for maximum security. Simply turn the screw cap in the intended socket - ready. The inattentive remove of the D-Sub plug is not possible any more.
• Connector surface: nickel-plated
• Assignment: 1-4, 2-3, 3-2, 4-1, 5-5, 7-8, 8-7, 9-9, S-S
• Color cable: beige

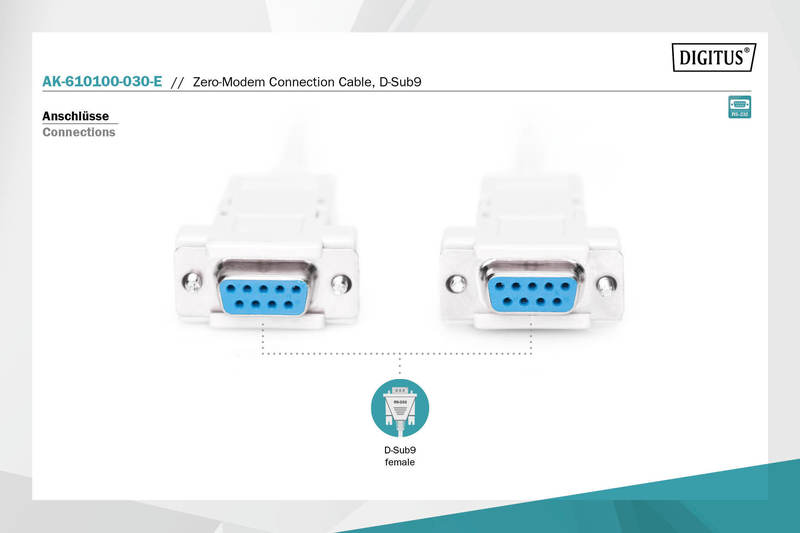

• Connector 1: DSUB, 9-pin, jack
• Connector 2: DSUB, 9-pin, jack
• Color connector: beige
• Hoods: snap hood
• Assortment: Serial Cables
• Length: 3 m
