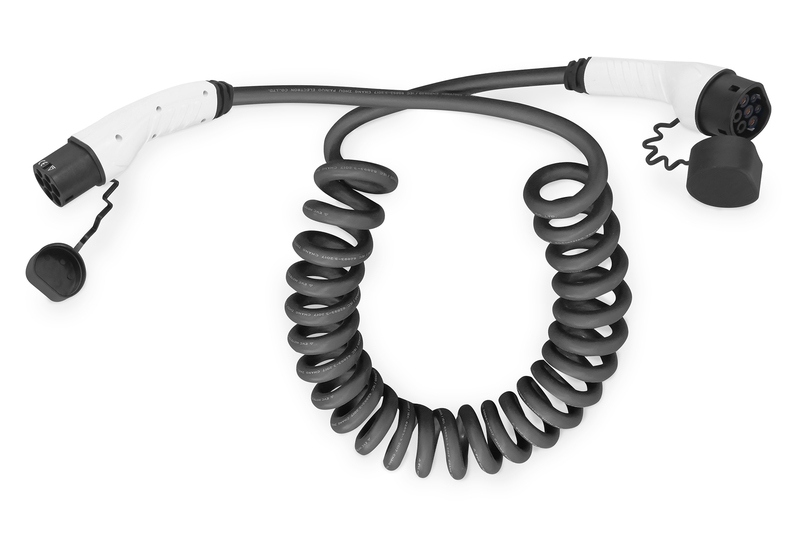

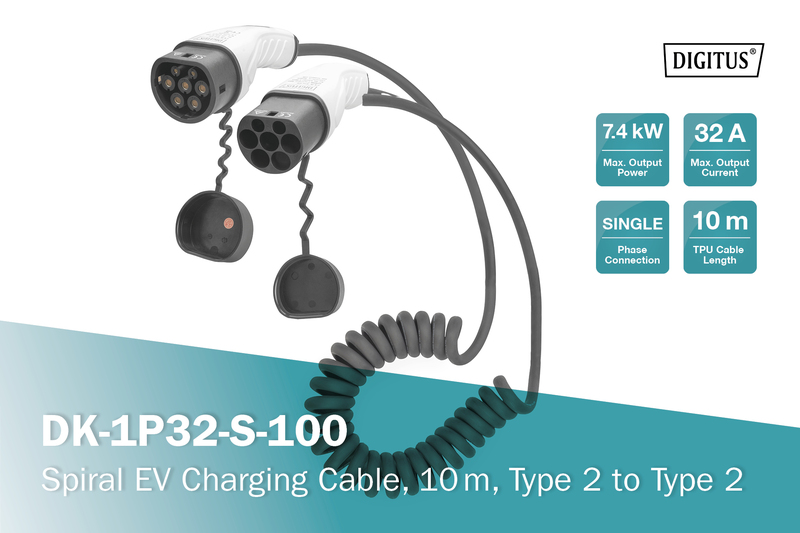

DIGITUS DIGITUS Spiral EV charging cable, 10m, type 2 to type 2

DK-1P32-S-100
EAN 4016032481492

Print version
  • Description

    EV charging - Single Phase, 240V, 32A, 10 m Type 2 to Type 2 Spiral charger cable

    DIGITUS DK-1P32-100 (10m) high quality flexible cable, offers in longer length, the comfort of charging in Home (garage) and also in public charging station

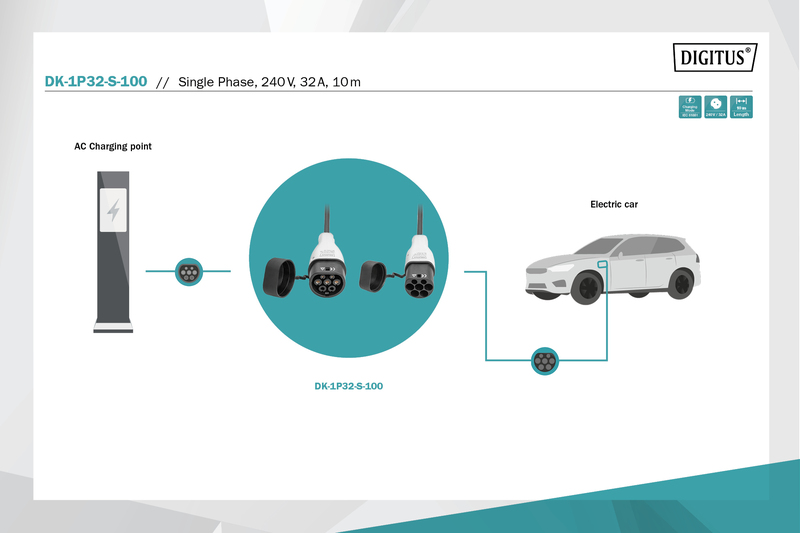

    • Easy plug and play in home wall box and also in public car charging stations
    • Compact and Easy to carry - Lightweight and space-saving cable, easy to store in car boot or hang it in garage
    • Safety and Durability - High quality copper cable and TPU material as outer jacket along with IP55 provides maximum protection for your EV charger and your car
    • Connectivity - Compatible with all electric vehicles, electric cars and hybrids of type 2 (IEC 62196-2)
    • Charging - Supports charging processes up to max. 22 kW depending on charger device (3-phase up to max. 22kW)
    • CE certified by TÜV
    • Flammability standard : UL94 V-0

    The DIGITUS DK-1P32-S-100 car charging cable allows you to easily connect any vehicle with type 2 plug to public charging stations or wallboxes with charging socket. The type 2 charging cables are certified according to EN 62196-1:2014, EN 62196-2:2017 and protection class IP55.

    Technical Details

    • Cable length : 10m
    • Cable diameter : 3G6mm²+2*0.5mm²
    • Outer diameter : 16,8mm +/- 0,5mm
    • Color : Black
    • Jacket : TPU

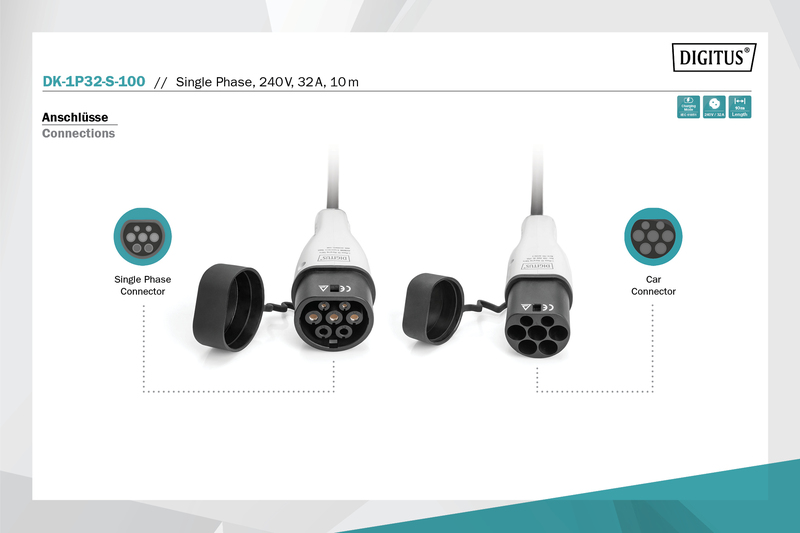

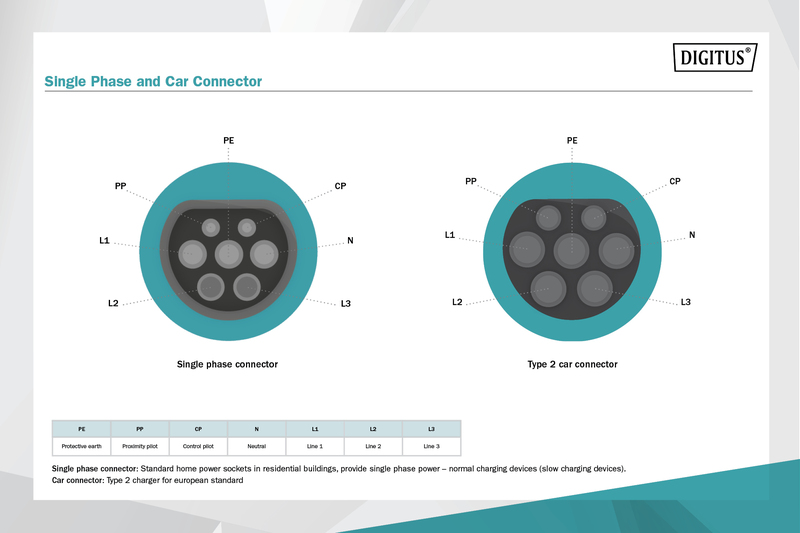

    • Connector : EN 62196-2 type 2
    • Rated voltage : 240V
    • Rated power : 7,4kW
    • Rated current : 32A
    • Number of phases : 1 phase
    • Contact resistance : 0.5mΩ (Max)
    • Insulation resistance : 1000MΩ (Min) @ DC500V
    • Resistive voltage : 2000V
    • Resistance coding : 220Ω
    • Terminal temperature rise : ≤50K
    • Standard : EN 62196-1:2014, EN 62196-2:2017
    • Working temperature : -30℃~+50℃
    • Humidity at work : 5% -95% non-condensed.
    • Flammability standard : UL94 V-0
    • IP protection : IP55

    Package content

    • 1 x Charger Cable
    • Quick Installation Guide
  • Logistics

    Number
    (pcs)
    Weight
    (kg)
    Depth
    (cm)
    Width
    (cm)
    Height
    (cm)
    cm³
    Packaging Unit Carton314,6039,0038,0038,0056316,00
    Packaging Unit Inside14,870,000,000,000,00
    Packaging Unit Single14,8735,0035,0015,0018375,00
    Net single without Packaging14,5135,0035,0015,0018375,00
  • Downloads

    Quick instructions guide
